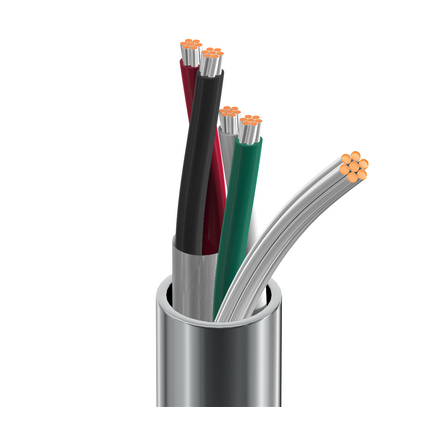

8722 - Audio, Control and Instrumentation Cable, 2 Pr #20 Str TC, 1 Pr Shielded, 1 Pr Unshielded, PVC Jkt, CMG

8722 – Audio, Control and Instrumentation Cable, 2 Pr #20 Str TC, 1 Pr Shielded, 1 Pr Unshielded, PVC Jkt, CMG

Call for Price

Compare
SKU: 8722 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 20 AWG 7×28 TC – Tinned Copper
Pair(s) 1 20 AWG 7×28 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.070 in (1.8 mm) Red & Black
Pair(s) PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.070 in (1.8 mm) Green & White
Inner Shield
Element Shield Type Material Coverage Drainwire Type
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Pair(s) No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.028 in (0.71 mm) 0.231 in (5.87 mm)
Overall Cable Diameter (Nominal): 0.231 in (5.87 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 11.3 Ohm/1000ft 11.54 Ohm/1000ft (37.86 Ohm/km) 60 pF/ft (200 pF/m) 99 pF/ft (320 pF/m) 6.08 Amps per conductor @ 25°C
Conductor(s) 10 Ohm/1000ft (33 Ohm/km) 6.08 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.3 in (58 mm) 2.3 in (58 mm)
Max. Pull Tension: 63 lbs (29 kg)
Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEEE 1202, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Request Technical Bulletin T/8-21 before planning high and low level circuits in the same cable.

History

Update and Revision: Revision Number: 0.432 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8722 060500 Chrome Reel 500 ft 612825214373 C
8722 060U500 Chrome UnReel 500 ft 612825214571
8722 0601000 Chrome Reel 1,000 ft 612825214403 C
8722 060U1000 Chrome UnReel 1,000 ft 612825214380
