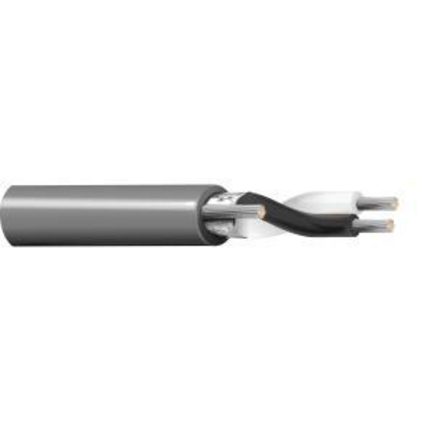

8720NH - Electronic, 2C #14 Str TC, PO ins, OS, LSNH Jkt, 600V

8720NH – Electronic, 2C #14 Str TC, PO ins, OS, LSNH Jkt, 600V

Call for Price

Compare
SKU: 8720NH Categories: , , ,

Description

Product Overview

Suitable Applications: Audio, signal, control and instrumentation applications

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
14 19×27 TC – Tinned Copper 1
Conductor Count: 2
Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE – Polyethylene 3.55 mm 0.8 mm
Color Chart
Number Color
Wire 1 Black
Wire 2 Clear
Outer Shield
Type Layer Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 100% TC – Tinned Copper AWG 16/19 Stranded
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 9 mm 0.9 mm

Construction and Dimensions

Cabling
Description
2 wires stranded + drainwire stranded tinned copper AWG16/19

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
8.3 Ohm/km 11.3 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
78 pF/m 154 pF/m
Impedance
Nominal Characteristic Impedance
58 Ohm
Current
Max. Recommended Current [A]
9.5 Amps per Conductor
Voltage
Voltage Rating [V]
600 V

Temperature Range

Storage Temperature Range: -30°C To +80°C
Operating Temperature Range: -30°C To +70°C
Other Temp Range: -20-+80 °C

Mechanical Characteristics

Min Bend Radius (W/o Pulling Strength): 45 mm
Min Setting Radius: 90 mm

Standards

UL AWM Style Compliance: AWM 21310
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Eca

Suitability

Suitability – Non-Halogenated: IEC 60754-2

Flammability, LS0H, Toxicity Testing

UL Flammability: UL horizontal flame test
IEC Flammability: IEC 60332-1-2
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
8720NH.00500 Gray Reel 500 m 8719605018557

History

Update and Revision: Revision Number: 0.162 Revision Date: 02-19-2024
