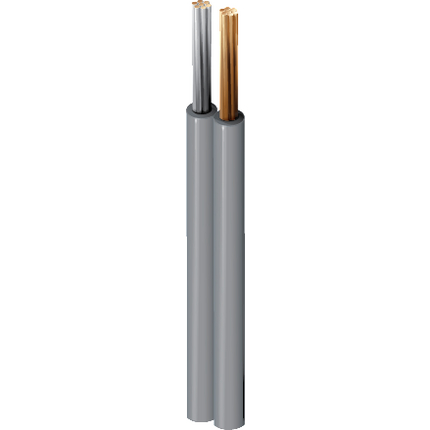

Product Overview
| Suitable Applications: |
Speaker Cable |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Conductors |
| 20 |
7×28 |
TC – Tinned Copper (High Conductivity) |
1 |
| 20 |
7×28 |
BC – Bare Copper |
1 |
| Material |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.018 in |
| Material |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
0.073 x 0.146 in |
Electrical Characteristics
| Nominal Conductor DCR |
| 10.5 Ohm/1000ft |
| Nominal Inductance |
| 0.2 µH/ft |
| Max. Recommended Current [A] |
| 3.8 Amps per Conductor at 25ºC |
| Non-UL Voltage Rating |
| 300 V RMS |
Temperature Range
| Operating Temperature Range: |
-20°C To +75°C |
Mechanical Characteristics
| Bulk Cable Weight: |
11 lbs/1000ft |
| Max. Pull Tension: |
31 lbs |
| Min. Bend Radius/Minor Axis: |
1.5 in |
Standards
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor (Not Riser or Plenum) |
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/96/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Indoor: |
Yes |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 8649 0601000 |
Chrome |
Reel |
1,000 ft |
612825213857 |
| 8649 3681000 |
Clear, Transparent |
Reel |
1,000 ft |
612825357797 |
History
| Update and Revision: |
Revision Number: 0.426 Revision Date: 02-15-2024 |
