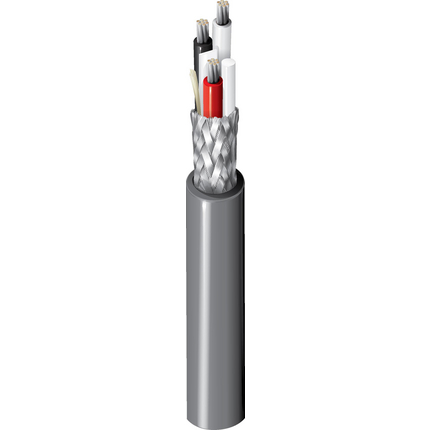

8643 - Electronic, 3 C #30 Str TC, PP Ins, OA TC Brd, PVC Jkt

8643 – Electronic, 3 C #30 Str TC, PP Ins, OA TC Brd, PVC Jkt

Call for Price

Compare
SKU: 8643 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 30 AWG 7×38 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Conductor(s) PP – Polypropylene 0.006 in (0.15 mm) Black, Red, White
Outer Shield
Shield Type Material Coverage Notes
Braid Tinned Copper (TC) 95% Paper Tape Separator
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Paper Tape PVC – Polyvinyl Chloride 0.014 in (0.36 mm) 0.096 in (2.4 mm)
Overall Cable Diameter (Nominal): 0.096 in (2.4 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 98.5 Ohm/1000ft (323 Ohm/km) 25 pF/ft (82 pF/m) 43 pF/ft (140 pF/m) 0.9 Amps per Conductor at 25ºC
Voltage
Voltage Rating
200 V

Mechanical Characteristics

Temperature
Operating
-20°C to +105°C
Bend Radius
Stationary Min. Installation Min.
1.0 in (25 mm) 1.0 in (25 mm)
Max. Pull Tension: 22.5 lbs (10.2 kg)
Bulk Cable Weight: 8 lbs/1000ft (12 kg/km)

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
CPR Compliance: CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Conductors cabled around textile strength member

History

Update and Revision: Revision Number: 0.369 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
8643 060100 Chrome Reel 100 ft 612825213826
8643 060250 Chrome Reel 250 ft 612825213833
