Description
Product Overview
| Suitable Applications: | low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, ); line level audio; voice communications; panel wiring |

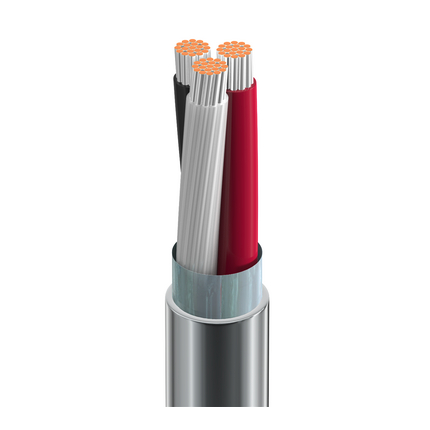

Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 16 AWG | 19×29 | TC – Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE – Polyethylene | 0.032 in (0.81 mm) | 0.122 in (3.10 mm) | Black, Red, Clear |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 18 AWG (16×30) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.031 in (0.79 mm) | 0.327 in (8.31 mm) |
| Overall Cable Diameter (Nominal): | 0.327 in (8.31 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 4.44 Ohm/1000ft | 26 pF/ft (85 pF/m) | 50 pF/ft (160 pF/m) | 16 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 600 V (UL AWM 20253), 300 V (CL3) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C to +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.3 in (84 mm) | 3.3 in (84 mm) |
| Max. Pull Tension: | 141 lbs (64.0 kg) |
| Bulk Cable Weight: | 60 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, CL3 |
| AWM Compliance: | AWM 20253 |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision: | Revision Number: 0.523 Revision Date: 01-20-2023 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8618 060500 | Chrome | Reel | 500 ft | 612825213420 | C |
| 8618 060U500 | Chrome | UnReel | 500 ft | 612825213406 | |
| 8618 0601000 | Chrome | Reel | 1,000 ft | 612825213413 | C |
| 8618 0605000 | Chrome | Reel | 5,000 ft | 612825213437 |
