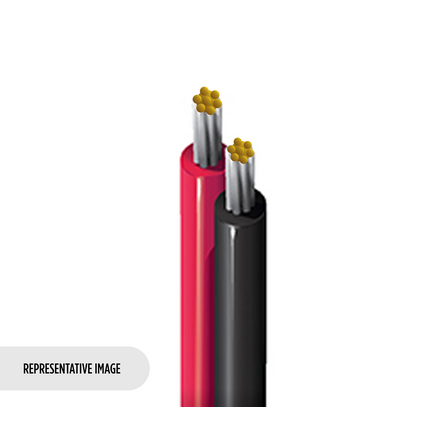

8470 - Speaker Cable, 2 #16 Str ETP-TC, Unjacketed

8470 – Speaker Cable, 2 #16 Str ETP-TC, Unjacketed

Call for Price

Compare
SKU: 8470 Categories: , , ,

Description

Product Overview

Suitable Applications: Indoor Speaker Cable

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 16 AWG 19×29 TC – Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.023 in (0.58 mm) 0.105 in (2.67 mm) Black, White
Outer Jacket
Material Nom. Diameter
No Jacket 0.210 in (5.33 mm)
Overall Cable Diameter (Nominal): 0.210 in (5.33 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 4.45 Ohm/1000ft 18 Amps per Conductor at 30ºC
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -30°C to +105°C
Bend Radius
Stationary Min. Installation Min.
2.1 in (53 mm) 2.1 in (53 mm)
Max. Pull Tension: 94 lbs (43 kg)
Bulk Cable Weight: 24 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: UL 1581 (VW-1)
AWM Compliance: AWM 1007
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.428 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8470 063500 Black and White Pair Reel 500 ft 612825208495
8470 0631000 Black and White Pair Reel 1,000 ft 612825208518 C
8470 063U1000 Black and White Pair UnReel 1,000 ft 612825213840
