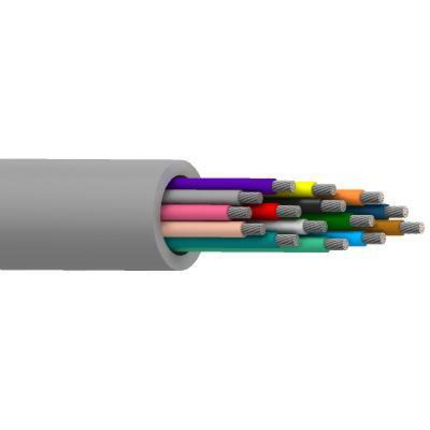

8468MN - SpaceMaker™, 15 C #18 Str TC, PO Ins, PVC Jkt, AWM 2937

8468MN – SpaceMaker™, 15 C #18 Str TC, PO Ins, PVC Jkt, AWM 2937

Call for Price

Compare
SKU: 8468MN Categories: , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 15 18 AWG 41×34 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP – Polypropylene 0.010 in (0.25 mm) 0.067 in (1.7 mm) Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan, Aqua, Light Green, Light Blue
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.347 in Yes
Overall Cable Diameter (Nominal): 0.347 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Max. Current
7.06 Ohm/1000ft 14.8 pF/ft (48.6 pF/m) 39 Ohm 3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
1.390 in (35.31 mm) 1.390 in
Max. Pull Tension: 307.5 lbs (139.5 kg)
Bulk Cable Weight: 101 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
AWM Compliance: AWM 2937
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.304 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color UPC
8468MN 006100 Blue, Light 612825386001
8468MN 0061000 Blue, Light 612825385981
8468MN 008100 Gray 612825385998
8468MN 0081000 Gray 612825382669
8468MN 004100 Yellow 612825385967
8468MN 0041000 Yellow 612825385974
