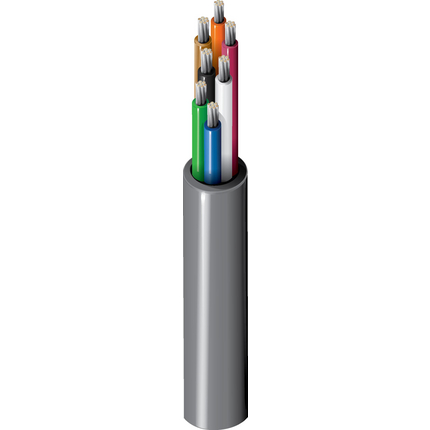

8467 - Electronic, 7 C #18 Str TC, PVC Ins, PVC Jkt, CMG

8467 – Electronic, 7 C #18 Str TC, PVC Ins, PVC Jkt, CMG

Call for Price

Compare
SKU: 8467 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 7 18 AWG 19×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.018 in (0.46 mm) 0.080 in (2.0 mm) Black, White, Red, Green, Brown, Blue, Orange
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.037 in (0.94 mm) 0.309 in (7.85 mm)
Overall Cable Diameter (Nominal): 0.309 in (7.85 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 7.13 Ohm/1000ft 26 pF/ft (85 pF/m) 9.8 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2598)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
3.1 in (79 mm) 3.1 in (79 mm)
Max. Pull Tension: 173 lbs (78.5 kg)
Bulk Cable Weight: 69 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2598
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.508 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8467 060100 Chrome Reel 100 ft 612825208341
8467 060250 Chrome Reel 250 ft 612825208372 C
8467 060500 Chrome Reel 500 ft 612825208389 C
8467 0601000 Chrome Reel 1,000 ft 612825208358 C
8467 0605000 Chrome Reel 5,000 ft 612825208396
8467 06010000 Chrome Reel 10,000 ft 612825208365
