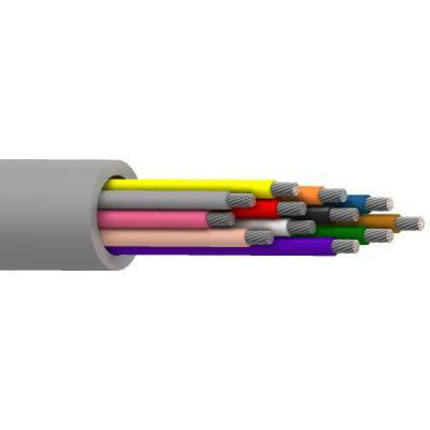

8466MN - SpaceMaker™, 12 C #18 Str TC, PO Ins, PVC Jkt, AWM 2937

8466MN – SpaceMaker™, 12 C #18 Str TC, PO Ins, PVC Jkt, AWM 2937

Call for Price

Compare
SKU: 8466MN Categories: , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 12 18 AWG 41×34 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP – Polypropylene 0.010 in (0.25 mm) 0.067 in (1.7 mm) Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.310 in
Overall Cable Diameter (Nominal): 0.310 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Max. Current
7.06 Ohm/1000ft 14.8 pF/ft (48.6 pF/m) 39 Ohm 3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
1.240 in (31.50 mm) 1.240 in
Max. Pull Tension: 246 lbs (112 kg)
Bulk Cable Weight: 80 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
AWM Compliance: AWM 2937
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.142 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
8466MN 006100 Blue, Light Reel 100 ft 612825387114
8466MN 0061000 Blue, Light Reel 1,000 ft 612825387121
8466MN 008100 Gray Reel 100 ft 612825387107
8466MN 0081000 Gray Reel 1,000 ft 612825387138
8466MN 004100 Yellow Reel 100 ft 612825387084
8466MN 0041000 Yellow Reel 1,000 ft 612825387114
