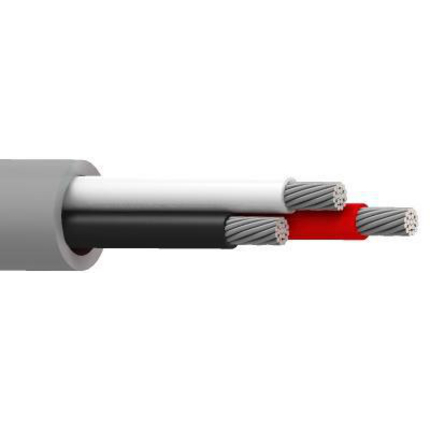

8463MN - SpaceMaker™, 3 C #18 Str TC, PO Ins, PVC Jkt, AWM 2937

8463MN – SpaceMaker™, 3 C #18 Str TC, PO Ins, PVC Jkt, AWM 2937

Call for Price

Compare
SKU: 8463MN Categories: , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 18 AWG 41×34 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP – Polypropylene 0.010 in (0.25 mm) 0.067 in (1.7 mm) Black, White, Red
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.176 in
Overall Cable Diameter (Nominal): 0.176 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Max. Current
7.06 Ohm/1000ft 14.8 pF/ft (48.6 pF/m) 39 Ohm 5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
0.700 in (17.8 mm) 0.700 in
Max. Pull Tension: 61.5 lbs (27.9 kg)
Bulk Cable Weight: 22 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
AWM Compliance: AWM 2937
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.289 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color UPC
8463MN 006100 Blue, Light 612825390992
8463MN 0061000 Blue, Light 612825391029
8463MN 008100 Gray 612825391005
8463MN 0081000 Gray 612825391036
8463MN 004100 Yellow 612825390985
8463MN 0041000 Yellow 612825391012
