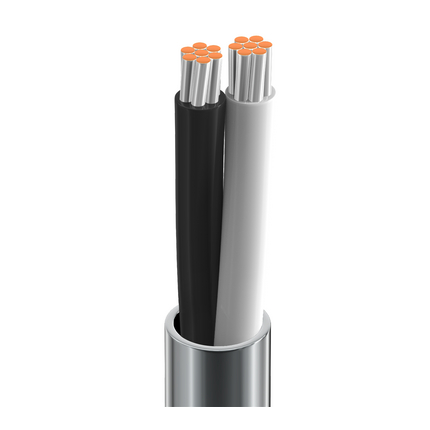

8461 - Electronic, 2 C #18 Str TC, PVC Ins, PVC Jkt, CMG

8461 – Electronic, 2 C #18 Str TC, PVC Ins, PVC Jkt, CMG

Call for Price

Compare
SKU: 8461 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 18 AWG 7×26 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.022 in (0.56 mm) 0.090 in (2.3 mm) Black & White
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.027 in (0.69 mm) 0.234 in (5.94 mm)
Overall Cable Diameter (Nominal): 0.234 in (5.94 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 7.2 Ohm/1000ft 22 pF/ft (72 pF/m) 14 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (CL3)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.3 in (58 mm) 2.3 in (58 mm)
Max. Pull Tension: 45 lbs (20 kg)
Bulk Cable Weight: 26 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 UL loading , FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, Article 800, CMG, CL3
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.518 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8461 060100 Chrome Reel 100 ft 612825208167
8461 060500 Chrome Reel 500 ft 612825208181 C
8461 060U500 Chrome UnReel 500 ft 612825208150
8461 0601000 Chrome Reel 1,000 ft 612825208174 C
8461 060U1000 Chrome UnReel 1,000 ft 612825208143
8461 0605000 Chrome Reel 5,000 ft 612825208198
