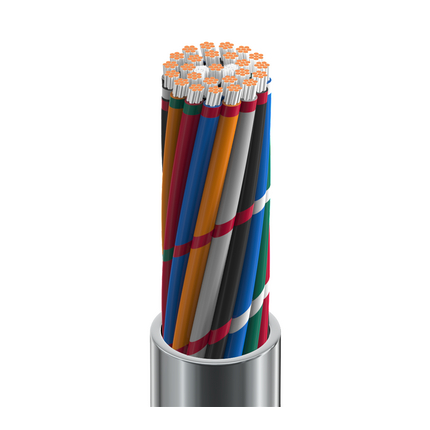

8459 - Electronic, 25 C #22 Str TC, PVC Ins, PVC Jkt, CMG

8459 – Electronic, 25 C #22 Str TC, PVC Ins, PVC Jkt, CMG

Call for Price

Compare
SKU: 8459 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 25 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.011 in (0.28 mm) 0.050 in (1.3 mm) Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.040 in (1.0 mm) 0.387 in (9.83 mm)
Overall Cable Diameter (Nominal): 0.387 in (9.83 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 18 Ohm/1000ft 34 pF/ft (110 pF/m) 3.6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
150 V (CMG), 150 V (UL AWM 2576)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
3.9 in (99 mm) 3.9 in (99 mm)
Max. Pull Tension: 228 lbs (103 kg)
Bulk Cable Weight: 101 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2576
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.505 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8459 060100 Chrome Reel 100 ft 612825208075
8459 060500 Chrome Reel 500 ft 612825208099 C
8459 0601000 Chrome Reel 1,000 ft 612825208082 C
8459 0605000 Chrome Reel 5,000 ft 612825208105
