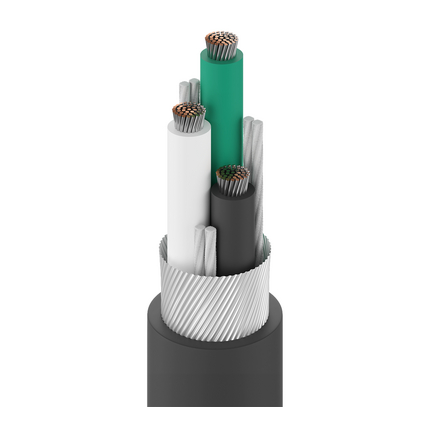

8453 - Portable Cordage, 3 C #18 Str TC, EPDM Ins, Rubber Jkt, UL Type SV

8453 – Portable Cordage, 3 C #18 Str TC, EPDM Ins, Rubber Jkt, UL Type SV

Call for Price

Compare
SKU: 8453 Categories: , , , ,

Description

Product Overview

Suitable Applications: Junior light-duty vacuum cord(300V), Other light-duty equipements

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 18 AWG 41×34 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM – Ethylene Propylene Diene Monomer 0.018 in (0.46 mm) 0.083 in (2.1 mm) Black, White, Green
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Cotton Serve SBR – Styrene Butadiene Rubber 0.036 in (0.91 mm) 0.256 in (6.50 mm)
Overall Cable Diameter (Nominal): 0.256 in (6.50 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 7.3 Ohm/1000ft 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
7 Amps per conductor @ 25°C over 50 ft.
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -40°C to +60°C
Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)
Max. Pull Tension: 62 lbs (28 kg)
Bulk Cable Weight: 42 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
NEC / UL Compliance: Article 400, SV
AWM Compliance: SV
CEC / C(UL) Compliance: LL7874
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.516 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8453 010100 Black Reel 100 ft 612825207818
8453 010500 Black Reel 500 ft 612825207825 C
