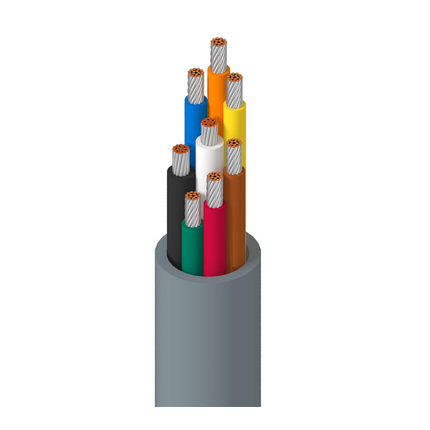

8448 - Electronic, 8 C #18+22 Str TC, PVC Ins, PVC Jkt, CMG

8448 – Electronic, 8 C #18+22 Str TC, PVC Ins, PVC Jkt, CMG

Call for Price

Compare
SKU: 8448 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 18 AWG 19×30 TC – Tinned Copper
Conductor(s) 6 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.018 in (0.46 mm) 0.080 in mm Black, White
Conductor(s) PVC – Polyvinyl Chloride 0.011 in (0.28 mm) Red, Green, Brown, Blue, Yellow, Orange
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.032 in (0.81 mm) 0.259 in
Overall Cable Diameter (Nominal): 0.259 in

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 7.0 Ohm/1000ft 14 Amps per Conductor at 25°C (18 AWG)
Conductor(s) 17.8 Ohm/1000ft (58.4 Ohm/km) 4 Amps per Conductor at 25ºC (22 AWG)
Voltage
UL Voltage Rating
300 V (CMG), 150 V (AWM 2576)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
2.59 in (65.8 mm) 2.59 in
Max. Pull Tension: 96 lbs (44 kg)
Bulk Cable Weight: 47 lbs/1000ft

Standards and Compliance

Environmental Suitability: Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2576
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.392 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8448 060500 Chrome Reel 500 ft 612825207597 C
8448 0601000 Chrome Reel 1,000 ft 612825207580 C
8448 060U1000 Chrome UnReel 1,000 ft 612825207573
