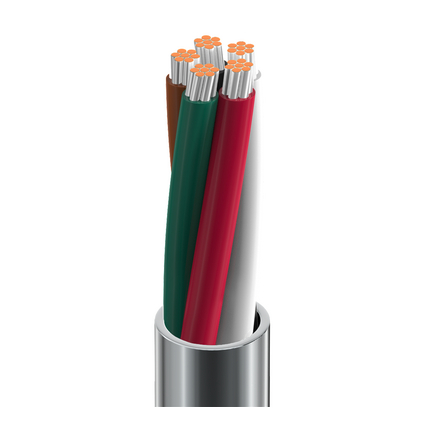

8445 - Electronic, 5 C #22 Str TC, PVC Ins, PVC Jkt, CMG

8445 – Electronic, 5 C #22 Str TC, PVC Ins, PVC Jkt, CMG

Call for Price

Compare
SKU: 8445 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 5 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.011 in (0.28 mm) 0.050 in (1.3 mm) Black, White, Red, Green, Brown
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.032 in (0.81 mm) 0.194 in (4.93 mm)
Overall Cable Diameter (Nominal): 0.194 in (4.93 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 17.8 Ohm/1000ft 34 pF/ft (110 pF/m) 2.4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG), 150 V (AWM 2576)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
1.9 in (48 mm) 1.9 in (48 mm)
Max. Pull Tension: 46 lbs (21 kg)
Bulk Cable Weight: 24 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2576
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.515 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8445 060100 Chrome Reel 100 ft 612825207481
8445 060500 Chrome Reel 500 ft 612825207504 C
8445 060U500 Chrome UnReel 500 ft 612825207474
8445 0601000 Chrome Reel 1,000 ft 612825207498 C
8445 0605000 Chrome Reel 1,000 ft 612825207511
8445 060U1000 Chrome UnReel 1,000 ft 612825207467
