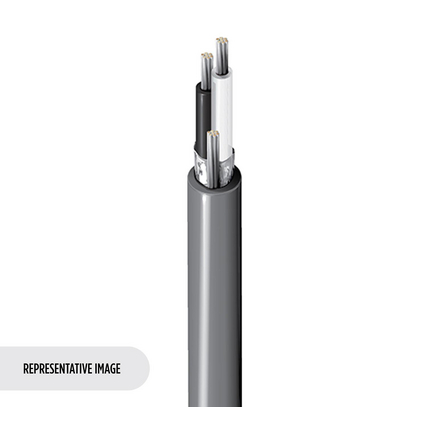

8443ZH – Electronic, 3 C #22 Str TC, PO Ins, LSZH Jkt, CMG

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Conductors
22 7×30 TC – Tinned Copper 3
Conductor Count: 3
Insulation
Material Nominal Wall Thickness
PP – Polypropylene 0.011 in
Color Chart
Color
Black
Red
Green
Outer Shield
Type Material
No Shield No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 0.172 0.032 mm
0.172 mm

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
15.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
15 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Voltage
UL Voltage Rating
300 V RMS
Electrical Characteristics Notes: 2.9 Amps per conductor @ 25°C

Temperature Range

UL Temp Rating: 75°C
Operating Temperature Range: -20C° to 80°C

Mechanical Characteristics

Max. Pull Tension: 27 lbs
Min. Bend Radius/Minor Axis: 1.650 in

Standards

NEC/(UL) Compliance: CMG
CEC/C(UL) Compliance: CMG
UL AWM Style Compliance: AWM 21307

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: Yes
EU CE Mark: Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 FT4 Loading
UL voltage rating: 300 V RMS

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
8443ZH 010500 Black Reel 500 ft 612825382249
8443ZH 0101000 Black Reel 1,000 ft 612825382232

History

Update and Revision: Revision Number: 0.161 Revision Date: 05-05-2023
