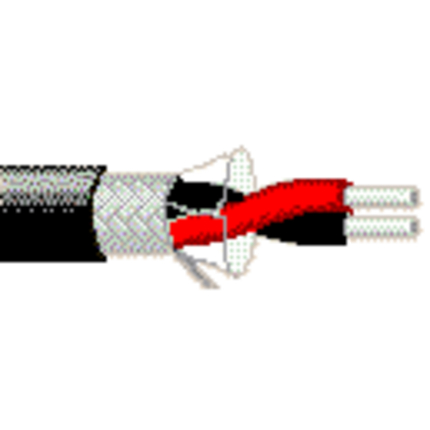

8437 - Audio, Control and Instrumentation, 1 Pair 22 AWG Solid, Shielded, CMG

8437 – Audio, Control and Instrumentation, 1 Pair 22 AWG Solid, Shielded, CMG

Call for Price

Compare
SKU: 8437 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
22 Solid TC – Tinned Copper 1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
Material Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.015 in
Color Chart
Number Color
1 Black & Red
Outer Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Braid Tinned Copper (TC) 90% TC – Tinned Copper 22 Solid
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
PVC – Polyvinyl Chloride 0.188 in 0.025 in Polyester Tape

Construction and Dimensions

Cabling
Filler
Polyester Tape

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
16.2 Ohm/1000ft 4.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
48 pF/ft 85 pF/ft
Inductance
Nominal Inductance
0.2 µH/ft
Impedance
Nominal Characteristic Impedance
46 Ohm
Current
Max. Recommended Current [A]
2.9 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS (UL AWM Style 2095)

Temperature Range

UL Temp Rating: 80°C (UL AWM Style 2095)
Operating Temperature Range: -20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 22 lbs/1000ft
Max. Pull Tension: 48 lbs
Min. Bend Radius/Minor Axis: 2 in

Standards

NEC/(UL) Compliance: CMG
CEC/C(UL) Compliance: CMG
UL AWM Style Compliance: AWM 2095 (300 V 80°C)

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 FT4 Loading
CSA Flammability: FT4
UL voltage rating: 300 V RMS (UL AWM Style 2095)

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
8437 0101000 Black Reel 1,000 ft 612825207177
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: Overall Cabling Separator Material: Polyester Tape

History

Update and Revision: Revision Number: 0.346 Revision Date: 02-15-2024
