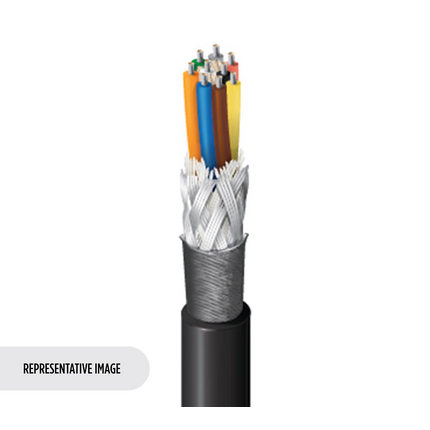

8418 - Microphone Cable, 8 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt, Flexible

8418 – Microphone Cable, 8 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt, Flexible

Call for Price

Compare
SKU: 8418 Categories: , , , ,

Description

Product Overview

Suitable Applications: Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 8 20 AWG 26×34 TC – Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM – Ethylene Propylene Diene Monomer 0.023 in (0.58 mm) 0.083 in (2.1 mm) Black, White, Brown, Green, Red, Yellow, Orange, Blue
Outer Shield
Shield Type Material Coverage
Braid Rayon® 85%
Braid Tinned Copper (TC) 85%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Cotton Serve EPDM – Ethylene Propylene Diene Monomer 0.037 in (0.94 mm) 0.381 in (9.68 mm)
Overall Cable Diameter (Nominal): 0.381 in (9.68 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 10.2 Ohm/1000ft 30 pF/ft (98 pF/m) 55 pF/ft (180 pF/m) 52 Ohm 2.8 Amps per Conductor at 25ºC
Voltage
Voltage Rating
600 V

Mechanical Characteristics

Temperature
Operating
-50°C to +90°C
Bend Radius
Stationary Min. Installation Min.
3.8 in (97 mm) 3.8 in (97 mm)
Max. Pull Tension: 164 lbs (74.4 kg)
Bulk Cable Weight: 100 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
CPR Compliance: CPR Euroclass: Fca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.505 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8418 010100 Black Reel 100 ft 612825206491
8418 010250 Black Reel 250 ft 612825355281 C
