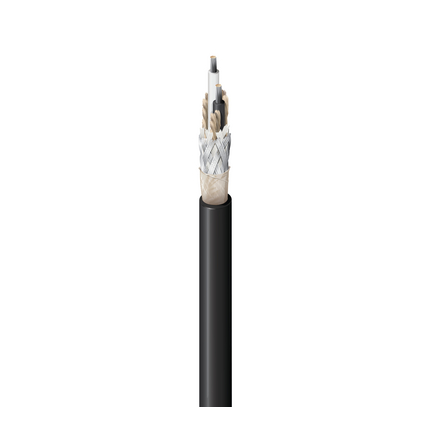

8412 - Microphone Cable, 2 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt

8412 – Microphone Cable, 2 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt

Call for Price

Compare
SKU: 8412 Categories: , , , ,

Description

Product Overview

Suitable Applications: Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 20 AWG 26×34 TC – Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM – Ethylene Propylene Diene Monomer 0.023 in (0.58 mm) 0.083 in (2.1 mm) White, Black
Outer Shield
Shield Type Material Coverage
Braid Rayon® 85%
Braid Tinned Copper (TC) 85%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Cotton Serve EPDM – Ethylene Propylene Diene Monomer 0.035 in (0.89 mm) 0.262 in (6.65 mm)
Overall Cable Diameter (Nominal): 0.262 in (6.65 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 10.6 Ohm/1000ft 33 pF/ft (110 pF/m) 58 pF/ft (190 pF/m) 67 Ohm 4 Amps per conductor @ 25°C
Voltage
Voltage Rating
600 V

Mechanical Characteristics

Temperature
Operating
-50°C to +90°C
Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)
Max. Pull Tension: 100 lbs (45 kg)
Bulk Cable Weight: 44 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 8412P

History

Update and Revision: Revision Number: 0.521 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8412 010100 Black Reel 100 ft 612825206361
8412 010250 Black Reel 250 ft 612825206385
8412 010500 Black Reel 500 ft 612825206330 C
8412 010U500 Black UnReel 500 ft 612825396987
8412 0101000 Black Reel 1,000 ft 612825206378 C
8412 010U1000 Black UnReel 1,000 ft 612825206347
8412 0061000 Blue, Light Reel 1,000 ft 612825206354 C
8412 0021000 Red Reel 1,000 ft 612825206316 C
8412 0041000 Yellow Reel 1,000 ft 612825206323 C
