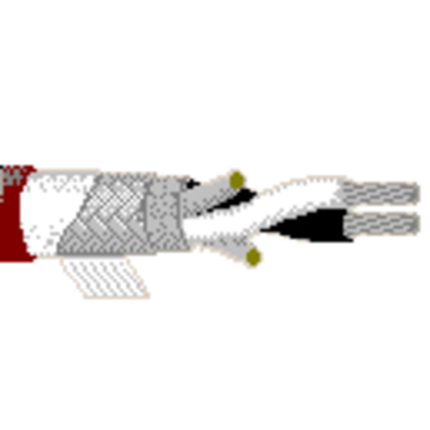

8402 - Microphone Cable, 2 Conductor 20 AWG, TC

8402 – Microphone Cable, 2 Conductor 20 AWG, TC

Call for Price

Compare
SKU: 8402 Categories: , , , ,

Description

Product Overview

Suitable Applications: Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Conductors
20 26×34 TC – Tinned Copper (High Conductivity) 0.083 in 2
Conductor Count: 2
Insulation
Material Nominal Diameter
EPDM – Ethylene Propylene Diene Monomer 0.083 in
Color Chart
Number Color
1 White
2 Black
Outer Shield
Type Material Coverage [%]
Braid Rayon® 85%
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
CSPE – Chlorosulphonated Polyethylene 0.263 in 0.035 in Cotton Serve

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR
10.2 Ohm/1000ft 10.2 Ohm/1000ft 3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
30 pF/ft 55 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
52 Ohm
Current
Max. Recommended Current [A]
4 Amps per Conductor at 25ºC
Voltage
Non-UL Voltage Rating
600 V RMS

Temperature Range

Non-UL Temp Rating: 60°C
Operating Temperature Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 50 lbs/1000ft
Max. Pull Tension: 98 lbs
Min. Bend Radius/Minor Axis: 2.63 in

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
8402 001500 Brown Reel 500 ft 612825206101
8402 001U1000 Brown UnReel 1,000 ft 612825206149
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.377 Revision Date: 02-15-2024
