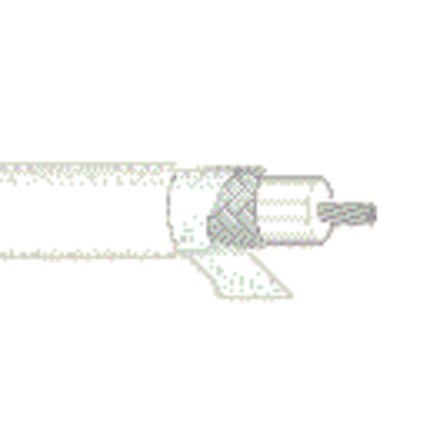

83267 – Computer and Instrumentation, #30 SPCCS Coax, SPC Braid, TFE Tape Jacket

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
30 Stranded SCCS – Silvered Copper Covered Steel 0.012 in 1
Conductor Count: 1
Insulation
Material Material Trade Name Nominal Diameter
PTFE – Polytetrafluoroethylene Teflon® 0.063 in
Outer Shield
Type Material Coverage [%]
Braid Silvered Copper (SC) 95%
Outer Jacket
Material Material Trade Name Nominal Diameter
PTFE – Polytetrafluoroethylene Teflon® 0.105 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
244 Ohm/1000ft 244 Ohm/1000ft 8.6 Ohm/1000ft 8.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
19.5 pF/ft
Inductance
Nominal Inductance
0.1 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 3 dB/100ft
10 MHz 5.3 dB/100ft
50 MHz 8.5 dB/100ft
100 MHz 10 dB/100ft
200 MHz 12.5 dB/100ft
400 MHz 16 dB/100ft
700 MHz 19.7 dB/100ft
900 MHz 22.3 dB/100ft
1000 MHz 24 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.44 ns/ft 70%
Voltage
Non-UL Voltage Rating
900 V RMS

Temperature Range

Non-UL Temp Rating: 200°C
Operating Temperature Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 10 lbs/1000ft
Max. Pull Tension: 18 lbs
Min. Bend Radius/Minor Axis: 1 in

Standards

RG Type: 187

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
83267 009100 White Reel 100 ft 612825203742
83267 0091000 White Reel 1,000 ft 612825203759
Footnote: E – MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25′.

Product Notes

Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision: Revision Number: 0.323 Revision Date: 11-09-2022
