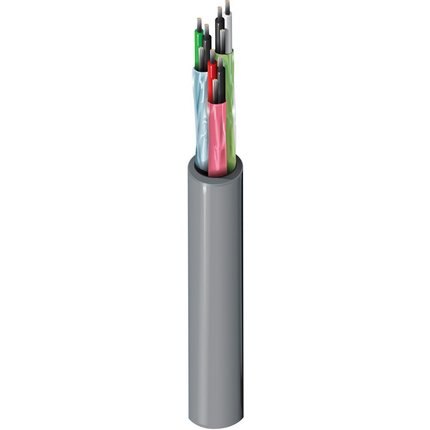

82777 - Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, LS-PVC Jkt, CMP

82777 – Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, LS-PVC Jkt, CMP

Call for Price

Compare
SKU: 82777 Categories: , , ,

Description

Product Overview

Suitable Applications: indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 3 22 7×30 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
FEP – Fluorinated Ethylene Propylene 0.011 in (0.28 mm) 0.050 in (1.3 mm) Black & Red, Black & White, Black & Green
Inner Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (19×34) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.237 in (6.02 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
18.2 Ohm/1000ft 160 Ohm/km (49 Ohm/1000ft) 10.46 Ohm/1000ft (34.32 Ohm/km) 35 pF/ft (110 pF/m) 76 pF/ft (250 pF/m) 46 Ohm 62% 1.96 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
90°C 0°C To +90°C
Bend Radius
Stationary Min. Installation Min.
2.37 in (60.2 mm) 2.37 in (60.2 mm)
Max. Pull Tension: 64.1 lbs (29.1 kg)
Bulk Cable Weight: 36 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: NFPA 262 (UL910), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 8777

History

Update and Revision: Revision Number: 0.459 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color UPC Footnote
82777 8771000 Natural 612825197829 C
82777 877U1000 Natural 612825197805
82777 877U500 Natural 612825197812
