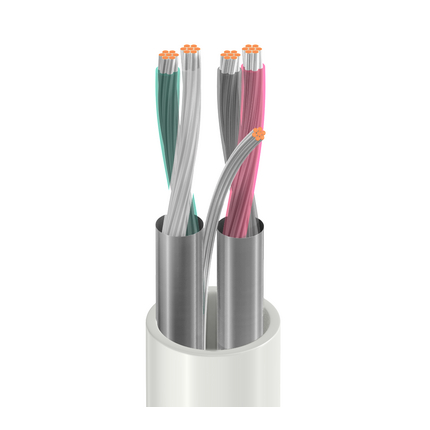

82723 - Audio, Control & Instrument, #22-2pr, FEP, Indiv. Foil, LS-PVC Jkt, CMP

82723 – Audio, Control & Instrument, #22-2pr, FEP, Indiv. Foil, LS-PVC Jkt, CMP

Call for Price

Compare
SKU: 82723 Categories: , , ,

Description

Product Overview

Suitable Applications: indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) FEP – Fluorinated Ethylene Propylene 0.007 in (0.18 mm) 0.042 in (1.1 mm) Black & Red, Green & White
Inner Shield
Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC each pair
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.153 in (3.89 mm)
Overall Cable Diameter (Nominal): 0.153 in (3.89 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 14.7 Ohm/1000ft 15 Ohm/1000ft (49 Ohm/km) 43 pF/ft (140 pF/m) 75 pF/ft (250 pF/m) 36 Ohm 62% 2.3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating
90°C -20°C to +90°C
Bend Radius
Stationary Min. Installation Min.
1.5 in (38 mm) 1.5 in (38 mm)
Max. Pull Tension: 46 lbs (21 kg)
Bulk Cable Weight: 19 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 8723

History

Update and Revision: Revision Number: 0.550 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color UPC Footnote
82723 8771000 Natural 612825197607 C
82723 8775000 Natural 612825197614
82723 877U1000 Natural 612825197577
82723 877U2000 Natural 612825197584
82723 877U500 Natural 612825197591
