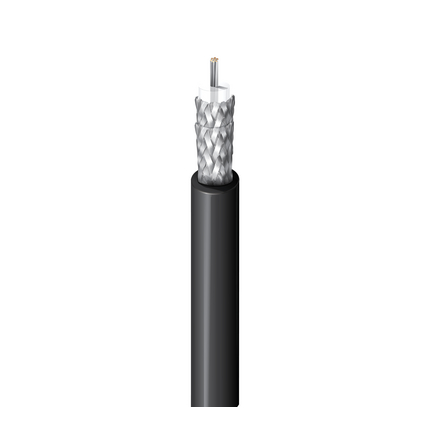

8268 - Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG Str SC, Double 95% SC Braid, PVC Jkt, CMX, Commercial Non-QPL

8268 – Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG Str SC, Double 95% SC Braid, PVC Jkt, CMX, Commercial Non-QPL

Call for Price

Compare
SKU: 8268 Categories: , , ,

Description

Product Overview

Suitable Applications: High frequency microwave and satellite, Point-to-point and point-to-multipoint wireless antenna communication

Construction Details

RG Type: 214
Conductor
Size Stranding Nom. Diameter Material
13 AWG 7×21 0.089 in SC – Silvered Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.285 in (7.24 mm) White
Outer Shield
Layer Outer Shield Type Material Coverage
1 Braid Silvered Copper (SC) 95%
2 Braid Silvered Copper (SC) 95%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride (Non-Contaminating) 0.425 in (10.8 mm)
Overall Cable Diameter (Nominal): 0.425 in (10.8 mm)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.17 dB/100ft
10 MHz 0.55 dB/100ft
50 MHz 1.3 dB/100ft
100 MHz 1.9 dB/100ft
200 MHz 2.7 dB/100ft
400 MHz 4.1 dB/100ft
700 MHz 6.5 dB/100ft
900 MHz 7.6 dB/100ft
1000 MHz 8.0 dB/100ft
4000 MHz 20.0 dB/100ft
Power Rating
Frequency Max. Power Rating
50 MHz 1,500 W
100 MHz 907 W
200 MHz 549 W
400 MHz 332 W
700 MHz 221 W
900 MHz 184 W
1,000 MHz 171 W
4,000 MHz 62 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
1.7 Ohm/1000ft 0.7 Ohm/1000ft (2.3 Ohm/km) 30.8 pF/ft (101 pF/m) 50 Ohm 66%
Voltage
UL Voltage Rating Voltage Rating
300 V (CMX), 30 V (UL AWM 1354) 3700 V (Mil-Spec)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C (UL AWM 1354) -40°C to +80°C
Bend Radius
Installation Min.
4.25 in (108 mm)
Max. Pull Tension: 225 lbs (102 kg)
Bulk Cable Weight: 131 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
Flammability / Reaction to Fire: VW-1
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: CMX
AWM Compliance: AWM 1354
CEC / C(UL) Compliance: CMX
Military Compliance: Commercial, non-QPL product (M17/164-00001)
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.485 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8268 010500 Black Reel 500 ft 612825358084 C
8268 0101000 Black Reel 1,000 ft 612825197546 C
