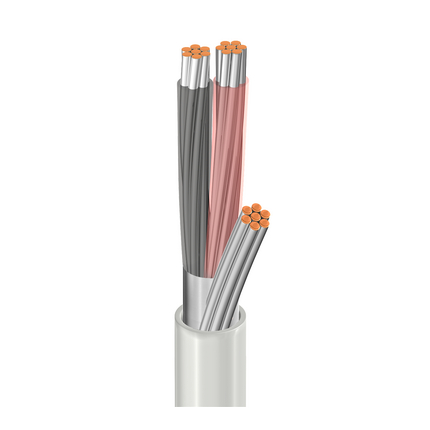

82641 - RS232, #24-1pr, FEP, O/A Foil, LS-PVC Jkt, CMP

82641 – RS232, #24-1pr, FEP, O/A Foil, LS-PVC Jkt, CMP

Call for Price

Compare
SKU: 82641 Categories: , , ,

Description

Product Overview

Suitable Applications: indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 24 AWG 7×32 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) FEP – Fluorinated Ethylene Propylene 0.006 in (0.15 mm) 0.036 in (0.91 mm) Black & Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.015 in (0.38 mm) 0.108 in (2.74 mm)
Overall Cable Diameter (Nominal): 0.108 in (2.74 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 24.1 Ohm/1000ft 31 pF/ft (100 pF/m) 59 pF/ft (190 pF/m) 2.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C 0°C to +60°C
Bend Radius
Stationary Min. Installation Min.
1.08 in (27.4 mm) 1.08 in (27.4 mm)
Max. Pull Tension: 16 lbs (7.3 kg)
Bulk Cable Weight: 8 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Plenum, Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum)
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 88641
Non-Plenum Number: 8641

History

Update and Revision: Revision Number: 0.538 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
82641 8771000 Natural Reel 1,000 ft 612825197508 C
82641 877U1000 Natural UnReel 1,000 ft 612825197492
