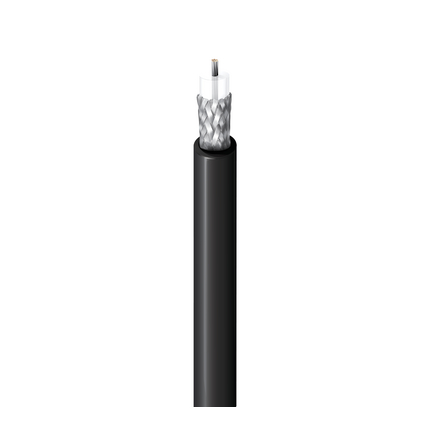

8262 - Mil-Spec Coax, 50 Ohm, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, Commercial Non-QPL

8262 – Mil-Spec Coax, 50 Ohm, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, Commercial Non-QPL

Call for Price

Compare
SKU: 8262 Categories: , , ,

Description

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

RG Type: 58
Conductor
Size Stranding Nom. Diameter Material
20 AWG 19×33 0.035 in TC – Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.115 in (2.92 mm) White
Outer Shield
Outer Shield Type Material Coverage
Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride (Non-Contaminating) 0.195 in (4.95 mm)
Overall Cable Diameter (Nominal): 0.195 in (4.95 mm)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.4 dB/100ft
10 MHz 1.4 dB/100ft
50 MHz 3.3 dB/100ft
100 MHz 4.9 dB/100ft
200 MHz 7.3 dB/100ft
400 MHz 11.5 dB/100ft
700 MHz 17.0 dB/100ft
900 MHz 20.0 dB/100ft
1000 MHz 21.5 dB/100ft
Power Rating
Frequency Max. Power Rating
50 MHz 300 W
100 MHz 200 W
400 MHz 90 W
1,000 MHz 55 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
10.8 Ohm/1000ft 4.1 Ohm/1000ft (13 Ohm/km) 30.8 pF/ft (101 pF/m) 50 Ohm 66%
Voltage
Voltage Rating
1400 V (Mil-Spec)

Mechanical Characteristics

Temperature
Operating
-40°C to +85°C
Bend Radius
Installation Min.
2 in (51 mm)
Max. Pull Tension: 42 lbs (19 kg)
Bulk Cable Weight: 24 lbs/1000ft

Standards and Compliance

Environmental Suitability: Outdoor – Aerial, Indoor, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
CPR Compliance: CPR Euroclass: Eca
Military Compliance: Commercial, non-QPL product (M17/155-00001)
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.527 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8262 010500 Black Reel 500 ft 612825197423 C
8262 010U500 Black UnReel 500 ft 612825358114
8262 0101000 Black Reel 1,000 ft 612825197454 C
8262 010U1000 Black UnReel 1,000 ft 612825197430
