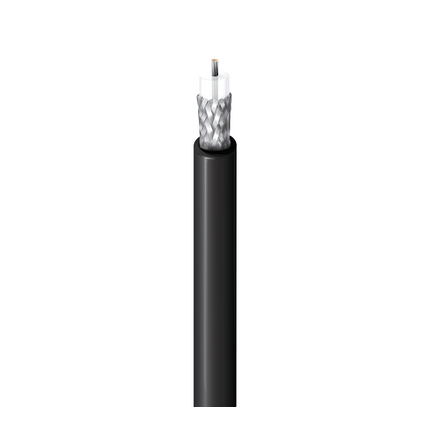

8259 - 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt

8259 – 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt

Call for Price

Compare
SKU: 8259 Categories: , , ,

Description

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

RG Type: 58
Conductor
Size Stranding Nom. Diameter Material
20 AWG 19×33 0.035 in TC – Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.117 in (2.97 mm) White
Outer Shield
Outer Shield Type Material Coverage
Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.193 in (4.90 mm)
Overall Cable Diameter (Nominal): 0.193 in (4.90 mm)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.4 dB/100ft
10 MHz 1.5 dB/100ft
50 MHz 3.7 dB/100ft
100 MHz 5.4 dB/100ft
200 MHz 8.1 dB/100ft
400 MHz 12.4 dB/100ft
700 MHz 17.7 dB/100ft
900 MHz 21.1 dB/100ft
1000 MHz 22.8 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
9.7 Ohm/1000ft (32 Ohm/km) 3.8 Ohm/1000ft (12 Ohm/km) 30.8 pF/ft (101 pF/m) 50 Ohm 66%
Voltage
Voltage Rating
1900 V

Mechanical Characteristics

Temperature
Operating
-30°C to +75°C
Bend Radius
Installation Min.
1.9 in (48 mm)
Max. Pull Tension: 42 lbs (19 kg)
Bulk Cable Weight: 25 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.529 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8259 010100 Black Reel 100 ft 612825197379
8259 010500 Black Reel 500 ft 612825197393 C
8259 010U500 Black UnReel 500 ft 612825357636
8259 0101000 Black Reel 1,000 ft 612825197386 C
8259 010U1000 Black UnReel 1,000 ft 612825197355
8259 0105000 Black Reel 5,000 ft 612825197348 C
