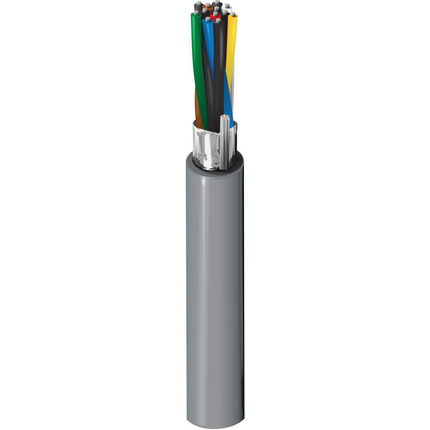

82506 - RS232, #24-6pr, FEP, O/A Foil, LS-PVC Jkt, CMP

82506 – RS232, #24-6pr, FEP, O/A Foil, LS-PVC Jkt, CMP

Call for Price

Compare
SKU: 82506 Categories: , , ,

Description

Product Overview

Suitable Applications: indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 6 24 AWG 7×32 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Pair(s) FEP – Fluorinated Ethylene Propylene 0.006 in (0.15 mm) Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.015 in (0.38 mm) 0.209 in (5.31 mm)
Overall Cable Diameter (Nominal): 0.209 in (5.31 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 24.1 Ohm/1000ft (79.1 Ohm/km) 25 pF/ft (82 pF/m) 45 pF/ft (150 pF/m) 1.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
Operating
0°C to +60°C
Max. Pull Tension: 71 lbs (32 kg)
Bulk Cable Weight: 32 lbs/1000ft (48 kg/km)

Standards and Compliance

Flammability / Reaction to Fire: NFPA 262 Plenum Flame Test (UL910)
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.299 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color UPC Footnote
82506 8771000 Natural 612825197256 C
82506 877U500 Natural 612825197249
