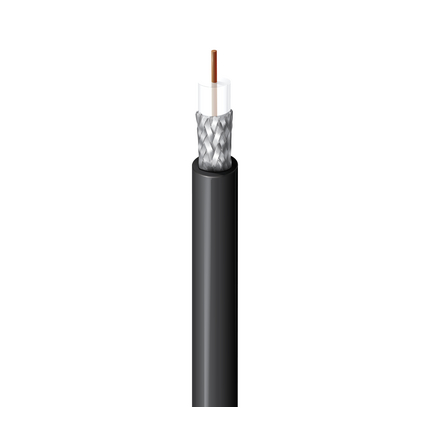

8240 - 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 95% TC Braid, PVC Jkt, CMX

8240 – 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 95% TC Braid, PVC Jkt, CMX

Call for Price

Compare
SKU: 8240 Categories: , , ,

Description

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

RG Type: 58
Conductor
Size Stranding Nom. Diameter Material
20 AWG Solid 0.033 in BC – Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.116 in (2.95 mm) White
Outer Shield
Outer Shield Type Material Coverage
Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.193 in (4.90 mm)
Overall Cable Diameter (Nominal): 0.193 in (4.90 mm)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.3 dB/100ft
10 MHz 1.1 dB/100ft
50 MHz 2.5 dB/100ft
100 MHz 3.8 dB/100ft
200 MHz 5.6 dB/100ft
400 MHz 8.4 dB/100ft
700 MHz 11.7 dB/100ft
900 MHz 13.7 dB/100ft
1000 MHz 14.5 dB/100ft
Power Rating
Frequency Max. Power Rating
50 MHz 530 W
100 MHz 350 W
400 MHz 160 W
1,000 MHz 90 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
9.4 Ohm/1000ft 4.1 Ohm/1000ft (13 Ohm/km) 28.5 pF/ft (93.5 pF/m) 52 Ohm 66%
Voltage
UL Voltage Rating Voltage Rating
300 V (CMX), 30 V (UL AWM 1354) 1900 V
Electrical Characteristics Notes: Actual Impedance specification is 51.5 +/- 1.5 ohms.

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C (UL AWM 1354) -40°C to +75°C
Bend Radius
Installation Min.
1.9 in (48 mm)
Max. Pull Tension: 47 lbs (21 kg)
Bulk Cable Weight: 26 lbs/1000ft

Standards and Compliance

Environmental Suitability: Outdoor – Aerial, Indoor, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL1581
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: CMX
AWM Compliance: AWM 1354
CEC / C(UL) Compliance: CMX
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 88240, 82240

History

Update and Revision: Revision Number: 0.537 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8240 010100 Black Reel 100 ft 612825196761
8240 010500 Black Reel 500 ft 612825196785 C
8240 010U500 Black UnReel 500 ft 612825358664
8240 0101000 Black Reel 1,000 ft 612825196778 C
8240 010U1000 Black UnReel 1,000 ft 612825196747
8240 0105000 Black Reel 5,000 ft 612825196730 C
