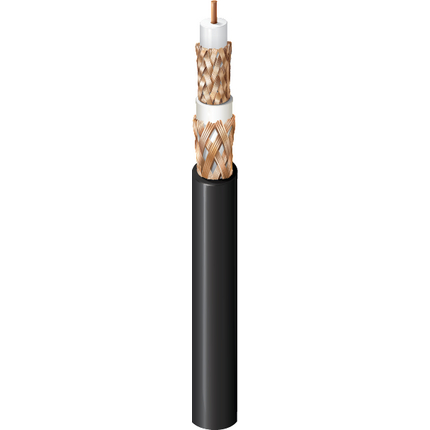

8232 - Video Triax, RG59, #20 Solid

8232 – Video Triax, RG59, #20 Solid

Call for Price

Compare
SKU: 8232 Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BC – Bare Copper 0.032 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.145 in
Table Notes: Gas Injected
Inner Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 95%
Inner Jacket
Material Nominal Diameter
PE – Polyethylene 0.225 in
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 80%
Outer Jacket
Material Nominal Diameter
PE – Polyethylene 0.315 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR Nominal Outer Shield DCR
10 Ohm/1000ft 10 Ohm/1000ft 2.5 Ohm/1000ft 2.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Min. Structural Return Loss (SRL)
5-850 MHz 21 dB
850-3000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
3.6 MHz 0.6 dB/100ft
10 MHz 0.9 dB/100ft
71.5 MHz 2.1 dB/100ft
135 MHz 3 dB/100ft
270 MHz 4.2 dB/100ft
360 MHz 4.8 dB/100ft
540 MHz 5.9 dB/100ft
720 MHz 7 dB/100ft
750 MHz 7.1 dB/100ft
1000 MHz 8.3 dB/100ft
1500 MHz 10.5 dB/100ft
2250 MHz 13.4 dB/100ft
3000 MHz 15.9 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.22 ns/ft 83%
Voltage
Non-UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 80°C
Operating Temperature Range: -55°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 55 lbs/1000ft
Max. Pull Tension: 125 lbs
Min. Bend Radius/Minor Axis: 3.25 in

Standards

RG Type: 59

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: Yes – When supported by messenger wire
Suitability – Burial: Yes
Suitability – Indoor: Yes
Suitability – Outdoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 88232

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
8232 010500 Black Reel 500 ft 612825355663
8232 0101000 Black Reel 1,000 ft 612825355687
8232 0102000 Black Reel 2,000 ft 612825355670
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.331 Revision Date: 11-09-2022
