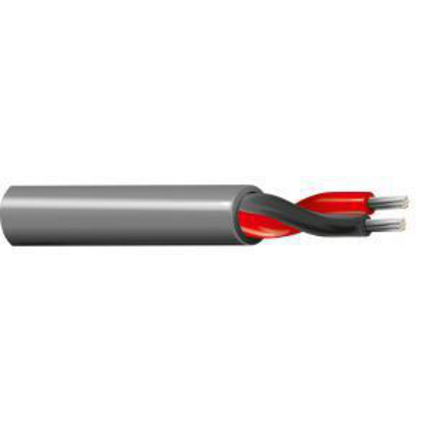

8205NH - Electronic, 1PR #20 Str TC, LSZH ins, Unsh, LSNH Jkt, 300V, Dca

8205NH – Electronic, 1PR #20 Str TC, LSZH ins, Unsh, LSNH Jkt, 300V, Dca

Call for Price

Compare
SKU: 8205NH Categories: , , ,

Description

Product Overview

Suitable Applications: Instrumentation and computer cable; For data transmission applications

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
20 7×28 TC – Tinned Copper 1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
Material Nominal Diameter Diameter +/- Tolerance
LSZH – Low Smoke Zero Halogen (Flame Retardant) 1.65 mm 0.05 mm
Color Chart
Number Color
Pair 1 Black & Red
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 5.10 mm 0.89 mm

Construction and Dimensions

Cabling
Description
1 pair covered with a polyester foil

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
32.8 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
100 pF/m
Current
Element Max. Recommended Current [A]
Conductor(s) 3.7 Amps per Conductor
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range: -15°C To +80°C
Storage Temperature Range: -45°C To +80°C
Operating Temp Range (Flexible Install): -15°C To +80°C
Operating Temp Range (Fixed Install): -45°C To +80°C

Mechanical Characteristics

Oil Resistance: IEC 60811-404
Max. Pull Tension: 127 N
Min. Bend Radius During Installation: 46.5 mm

Standards

CPR Euroclass: Dca-s1,d1,a1

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Dca

Suitability

Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2, IEC 60332-3-24
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
8205NH.00305 Chrome Reel 305 m 8719605018144
8205NH.00500 Chrome Reel 500 m 8719605018151
8205NH.001000 Chrome Reel 1,000 m 8719605018137
8205NH.011000 Violet Reel 1,000 m 8719605018168

History

Update and Revision: Revision Number: 0.229 Revision Date: 02-15-2024
