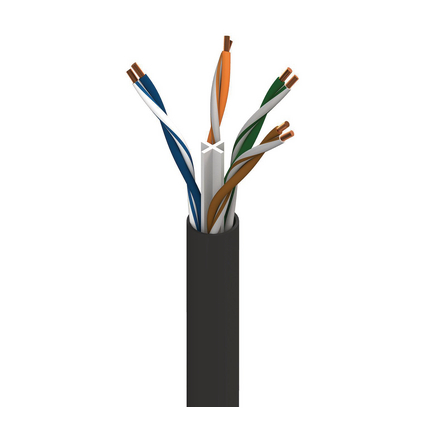

7969A - DataTuff® 6, 4 Bonded-Pr #22 Sol BC, PP Ins, X-spline, PVC Jkt, PLTC, CMR, CMX Outdoor

7969A – DataTuff® 6, 4 Bonded-Pr #22 Sol BC, PP Ins, X-spline, PVC Jkt, PLTC, CMR, CMX Outdoor

Call for Price

Compare
SKU: 7969A Categories: , , ,

Description

Product Overview

Suitable Applications: power-limited tray, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 22 AWG Solid BC – Bare Copper 4 4
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: Yes
Outer Jacket
Separator Material Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC – Polyvinyl Chloride 0.335 in (8.51 mm) Yes
Overall Cable Diameter (Nominal): 0.335 in (8.51 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
56.5 Ohm/km (17.2 Ohm/1000ft) 330 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537 ns/100m 45 ns/100m 69%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
1 2.0 dB/100m 74.3 72.3 72.3 70.3 67.8 64.8 20 100 ± 15 100 ± 15 40.0 35.0
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.7 23 100 ± 15 100 ± 15 40.0 23.0
8 5.3 dB/100m 60.8 58.8 55.4 53.4 49.7 46.7 24.5 100 ± 15 100 ± 15 40.0 16.9
10 6 dB/100m 59.3 57.3 53.3 51.3 47.8 44.8 25 100 ± 15 100 ± 15 40.0 15.0
16 7.6 dB/100m 56.2 54.3 48.7 46.7 43.7 40.7 25 100 ± 15 100 ± 15 38.0 10.9
20 8.5 dB/100m 54.8 52.8 46.3 44.3 41.8 38.8 25 100 ± 15 100 ± 15 37.0 9.0
25 9.5 dB/100m 53.3 51.3 43.8 41.8 39.8 36.8 24.3 100 ± 15 100 ± 15 36.0 7.0
31.25 10.7 dB/100m 51.9 49.9 41.2 39.2 37.9 34.9 23.6 100 ± 15 100 ± 15 35.1 5.1
62.5 15.4 dB/100m 47.4 45.4 32 30 31.9 28.9 21.5 100 ± 15 100 ± 15 32.0
100 19.8 dB/100m 44.3 42.3 24.5 22.5 27.8 24.8 20.1 100 ± 15 100 ± 15 30.0
155 25.2 dB/100m 41.5 39.5 16.3 14.3 23.9 20.9 18.8 100 ± 20 100 ± 15 28.1
200 29.0 dB/100m 39.8 37.8 10.8 8.8 21.8 18.8 18 100 ± 20 100 ± 15 27.0
250 32.8 dB/100m 38.3 36.3 5.5 3.5 19.8 16.8 17.3 100 ± 20 100 ± 15 26.0
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
75°C -40°C To +75°C 0°C To +60°C -40°C To +75°C
Bend Radius
Installation Min.
3.4 in (86 mm)
Max. Pull Tension: 40 lbs (18 kg)
Bulk Cable Weight: 51 lbs/1000ft

Standards and Compliance

Environmental Suitability: Riser, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1666 Riser CMR/CMX Outdoor
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: PLTC – CMR/CMX Outdoor
AWM Compliance: AWM 21047
CEC / C(UL) Compliance: CMR
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category: Category 6
TIA/EIA Compliance: Category 6 – TIA 568.2-D
ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Jacket sequentially marked at 2 ft. intervals.

History

Update and Revision: Revision Number: 0.161 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length Footnote
7969A 0101000 Black Reel 305 m C
7969A 0105000 Black Reel 305 m C
