7962A - DataTuff® Cat 5e, Quad (2 Pr) #22 Str TC, PO Ins, OS+TC Brd, TPE Jkt, CM CMX-Outdoor

7962A – DataTuff® Cat 5e, Quad (2 Pr) #22 Str TC, PO Ins, OS+TC Brd, TPE Jkt, CM CMX-Outdoor

Call for Price

Compare
SKU: 7962A Categories: , , ,

Description

Product Overview

Suitable Applications: PROFINET, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

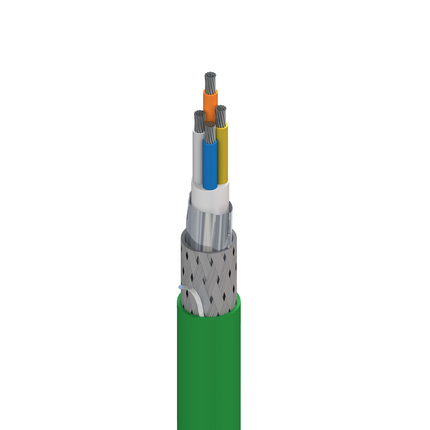

Construction Details

Conductor
Element Size Stranding Material No. of Elements
Quad(s) 22 AWG 19×34 TC – Tinned Copper 1
Insulation
Material Color Code
PO – Polyolefin White, Blue, Yellow, Orange
Inner Jacket
Material Nom. Diameter
PE – Polyethylene 0.169 in (4.29 mm)
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter Ripcord
TPE – Thermoplastic Elastomer 0.276 in (7.01 mm) No
Overall Cable Diameter (Nominal): 0.276 in (7.01 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
57 Ohm/km (17 Ohm/1000ft) 150 pF/ft
Delay
Max. Delay Nom. Velocity of Prop.
552 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.1 dB/100m 65.3 62.3 63.2 63.8 60.8 23 100 ± 20.2 105 ±10
4 4.0 dB/100m 56.3 53.3 56.3 51.7 48.7 23 100 ± 14.2 100 ±10
8 5.6 dB/100m 51.8 48.8 46.2 45.7 42.7 23 100 ± 11.3 100 ±10
10 6.3 dB/100m 50.3 47.3 43.9 43.8 40.8 25 100 ± 11.3 100 ±10
16 8.0 dB/100m 47.3 44.3 35.2 39.7 36.7 25 100 ± 11.3 100 ±10
20 9.0 dB/100m 45.8 42.8 36.5 37.7 34.7 25 100 ± 11.3 100 ±10
25 10.1 dB/100m 44.3 41.3 34.2 35.8 32.8 25.5 100 ± 11.3 100 ±10
31.25 11.4 dB/100m 42.9 39.9 31.3 33.9 30.9 23.6 100 ± 13.2 100 ±10
62.5 16.5 dB/100m 38.4 35.4 21.6 27.8 24.8 21.5 100 ± 16.9 100 ±10
100 21.3 dB/100m 35.3 32.3 17.1 23.8 20.8 20.1 100 ± 20.0 100 ±10
Voltage
UL Voltage Rating
300 V (CM, CMX-Outdoor), 600 V (AWM 20626)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
75°C -40°C To +80°C -20°C To +60°C -40°C To +80°C
Bend Radius
Stationary Min.
2.560 in (65.02 mm)
Max. Pull Tension: 55 lbs (25 kg)
Bulk Cable Weight: 45 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: UL 1685 (UL Loading), FT4, IEEE 1202 Vertical Tray Flame Test
NEC / UL Compliance: Article 800, CM, CMX-Outdoor, ITC, PLTC
AWM Compliance: AWM 20626
CEC / C(UL) Compliance: CMX-Outdoor
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-6
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Operating Temperature subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. Limits below 4 MHz are for information only.

History

Update and Revision: Revision Number: 0.425 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC/EAN
7962A+0085 Green Reel 85 m 8719605196156
7962A.00305 Green Reel 305 m 8719605016812
7962A.00610 Green Reel 610 m 8719605016829
7962A 1SW1000 Green, RAL 6018 612825367024
7962A 1SW2000 Green, RAL 6018 612825367031
