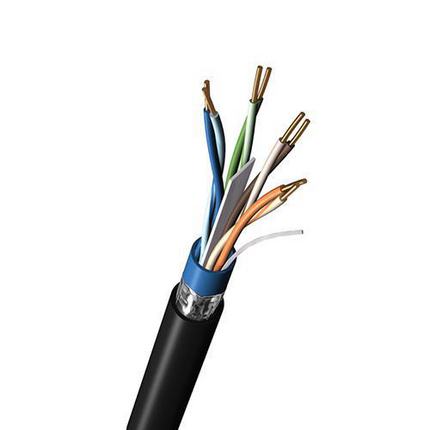

7953T - DataTuff® 6, 4 Bonded-Pr #23 Sol BC, PO Ins, OS, PO Jkt, LSZH Jkt, CMG-ST1, FT4

7953T – DataTuff® 6, 4 Bonded-Pr #23 Sol BC, PO Ins, OS, PO Jkt, LSZH Jkt, CMG-ST1, FT4

Call for Price

Compare
SKU: 7953T Categories: , , ,

Description

Product Overview

Suitable Applications: shipboard, transportation, outdoor, in cabinet with high volt devices, such as motor control center, mining, noisy environment, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs
Pair(s) 23 AWG Solid BC – Bare Copper 4
Insulation
Element Material Nom. Insulation Diameter Color Code
Pair(s) PO – Polyolefin 0.043 in (1.1 mm) Blue & White/Blue, Orange & White/Orange, Green & White/Green, Brown & White/Brown
Bonded-Pair: Yes
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Material Trade Name Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) Haloarrest® 0.487 in (12.4 mm)
Overall Cable Diameter (Nominal): 0.487 in (12.4 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
25 Ohm/1000ft (82 Ohm/km) 330 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
537 ns/100m 45 ns/100m 72%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm]
1 2 dB/100m 74.3 72.3 72.3 70.3 67.8 64.8 21 100 ± 15
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.7 24 100 ± 15
8 5.3 dB/100m 60.8 58.8 55.4 53.4 49.7 46.7 25.5 100 ± 15
10 6 dB/100m 59.3 57.3 53.3 51.3 47.8 44.8 26 100 ± 15
16 7.6 dB/100m 56.2 54.3 48.7 46.7 43.7 40.7 26 100 ± 15
20 8.5 dB/100m 54.8 52.8 46.3 44.3 41.8 38.8 26 100 ± 15
25 9.5 dB/100m 53.3 51.3 43.8 41.8 39.8 36.8 25.3 100 ± 15
31.25 10.7 dB/100m 51.9 49.9 41.2 39.2 37.9 34.9 24.6 100 ± 15
62.5 15.4 dB/100m 47.4 45.4 32 30 31.9 28.9 22.5 100 ± 15
100 19.8 dB/100m 44.3 42.3 24.5 22.5 27.8 24.8 21.1 100 ± 15
155 25.2 dB/100m 41.5 39.5 16.3 14.3 23.9 20.9 19.8 100 ± 22
200 29 dB/100m 39.8 37.8 10.8 8.8 21.8 18.8 19 100 ± 22
250 32.8 dB/100m 38.3 36.3 5.5 3.5 19.8 16.8 18.3 100 ± 32
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
60°C -30°C To +60°C -20°C To +75°C -30°C To +60°C
Bend Radius
Stationary Min. Installation Min.
3.0 in (76 mm) 4.9 in (120 mm)
Max. Pull Tension: 55 lbs (25 kg)
Bulk Cable Weight: 144 lbs/1000ft (214 kg/km)

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, UV Resistance
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202
NEC / UL Compliance: Article 800, CMG-ST1
CEC / C(UL) Compliance: CMG-ST1
Data Category: Category 6
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): NFPA 130

History

Update and Revision: Revision Number: 0.305 Revision Date: 12-08-2023

Part Numbers

Variants
Item # Color
7953T 0101000
7953T 0104000
7953T 0105000 Black
