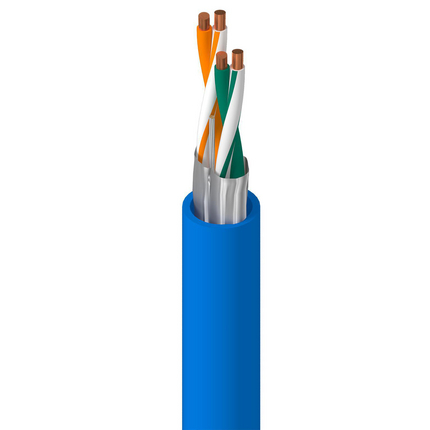

7933A - DataTuff® Cat 5e, 2 Bonded-Pr #24 Sol BC, PO Ins, OS, PVC Jkt, CMR SUN RES OIL RES

7933A – DataTuff® Cat 5e, 2 Bonded-Pr #24 Sol BC, PO Ins, OS, PVC Jkt, CMR SUN RES OIL RES

Call for Price

Compare
SKU: 7933A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 24 AWG Solid BC – Bare Copper 2 2
Insulation
Material Color Code
PO – Polyolefin White/Orange Stripe & Orange, White/Green Stripe & Green
Bonded-Pair: Yes
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.235 in (5.97 mm) No
Overall Cable Diameter (Nominal): 0.235 in (5.97 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 90 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
552 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.1 dB/100m 65.3 62.3 63.2 60 63.8 60.8 23 23 100 ± 20.2 105 ± 10
4 4.0 dB/100m 56.3 53.3 56.3 49 51.7 48.7 23 23 100 ± 14.2 100 ± 10
8 5.6 dB/100m 51.8 48.8 46.2 43 45.7 42.7 23 24.5 100 ± 11.3 100 ± 10
10 6.3 dB/100m 50.3 47.3 43.9 41 43.8 40.8 25 25 100 ± 11.3 100 ± 10
16 8.0 dB/100m 47.3 44.3 35.2 36 39.7 36.7 25 25 100 ± 11.3 100 ± 10
20 9.0 dB/100m 45.8 42.8 36.5 33.5 37.7 34.7 25 25 100 ± 11.3 100 ± 10
25 10.1 dB/100m 44.3 41.3 34.2 30.9 35.8 32.8 25.5 24.3 100 ± 11.3 100 ± 10
31.25 11.4 dB/100m 42.9 39.9 31.3 28 33.9 30.9 23.6 23.6 100 ± 13.2 100 ± 10
62.5 16.5 dB/100m 38.4 35.4 21.6 19 27.8 24.8 21.5 21.5 100 ± 16.9 100 ± 10
100 21.3 dB/100m 35.3 32.3 17.1 11 23.8 20.8 20.1 20.1 100 ± 20.0 100 ± 10
155 28.1 dB/100m 32.5 29.5 4.4 1.4 19.9 16.9 15.8 100 ± 25.0 100 ± 15
200 32 dB/100m 30.8 27.8 4 1 17.7 14.7 15 100 ± 25.0 100 ± 15
Voltage
UL Voltage Rating
300 V (CMR)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
60°C -40°C To +80°C -25°C To +60°C -40°C To +80°C
Bend Radius
Stationary Min.
2.560 in (65.02 mm)
Max. Pull Tension: 55 lbs (25 kg)
Bulk Cable Weight: 31 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: UL 1685 (FT4 Loading), FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMR
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Operating Temperature subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. Limits below 4 MHz are for information only.

History

Update and Revision: Revision Number: 0.567 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
7933A 0101000 Black Reel 1,000 ft 612825191643 C
7933A 1NH1000 Teal Reel 1,000 ft 612825191667 C
