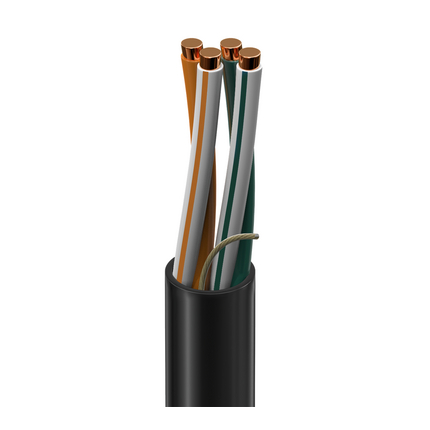

7932A - DataTuff® 5e, 2 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, CMR SUN RES OIL RES

7932A – DataTuff® 5e, 2 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, CMR SUN RES OIL RES

Call for Price

Compare
SKU: 7932A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Physical Characteristics (Overall)

Conductor
Element AWG Stranding Material Nominal Diameter No. of Pairs
Pair(s) 24 Solid BC – Bare Copper 0.02 in 2
Conductor Count: 4
Total Number of Pairs: 2
Insulation
Element Material Nominal Diameter Nominal Wall Thickness
Pair(s) PO – Polyolefin 0.043 in 0.010 in
Bonded-Pair: Yes
Color Chart
Number Color
1 Orange & White/Orange
2 Green & White/Green
Outer Jacket
Material Nominal Diameter Ripcord
PVC – Polyvinyl Chloride 0.207 in Yes

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
29.7 Ohm/1000ft 3 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
90 pF/100m 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
510 ns/100m 25 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2 dB/100m 65.3 dB 65.3 dB 63.3 dB 63.3 dB 63.8 dB 60.8 dB 20 dB 100 ± 12 Ohm 95-110 Ohm
4 MHz 4 dB/100m 56.3 dB 56.3 dB 52.3 dB 52.3 dB 51.7 dB 48.7 dB 23.6 dB 100 ± 12 Ohm 95-110
8 MHz 5.7 dB/100m 51.8 dB 51.8 dB 46.1 dB 46.1 dB 45.7 dB 42.7 dB 25.4 dB 100 ± 12 Ohm 95-107
10 MHz 6.4 dB/100m 50.3 dB 50.3 dB 43.9 dB 43.9 dB 43.8 dB 40.8 dB 26 dB 100 ± 12 Ohm 95-107
16 MHz 8.1 dB/100m 47.3 dB 47.3 dB 39.1 dB 39.1 dB 39.7 dB 36.7 dB 26 dB 100 ± 12 Ohm 95-107
20 MHz 9.2 dB/100m 45.8 dB 45.8 dB 35.2 dB 35.2 dB 37.7 dB 34.7 dB 26 dB 100 ± 12 Ohm 95-107
25 MHz 10.3 dB/100m 44.3 dB 44.3 dB 34.1 dB 34.1 dB 35.8 dB 32.8 dB 25.5 dB 100 ± 15 Ohm 95-107
31.25 MHz 11.6 dB/100m 42.9 dB 42.9 dB 31.3 dB 31.3 dB 33.9 dB 30.9 dB 25 dB 100 ± 15 Ohm 95-107
62.5 MHz 16.8 dB/100m 38.4 dB 38.4 dB 21.6 dB 21.6 dB 27.8 dB 24.8 dB 23.5 dB 100 ± 15 Ohm 95-107
100 MHz 21.7 dB/100m 35.3 dB 35.3 dB 17.1 dB 17.1 dB 23.8 dB 20.8 dB 22.5 dB 100 ± 15 Ohm
155 MHz 27.7 dB/100m 32.5 dB 32.5 dB 4.7 dB 4.7 dB 19.9 dB 16.9 dB 19 dB 100 ± 18 Ohm
200 MHz 32 dB/100m 30.8 dB 30.8 dB 3 dB 3 dB 17.7 dB 14.7 dB 19 dB 100 ± 20 Ohm
250 MHz 36.4 dB/100m 29.3 dB 29.3 dB 0 dB 0 dB 15.8 dB 12.8 dB 18 dB 100 ± 20 Ohm
300 MHz 40.5 dB/100m 28.2 dB 28.2 dB 0 dB 0 dB 14.2 dB 11.2 dB 18 dB 100 ± 20 Ohm
310 MHz 41.3 dB/100m 27.9 dB 27.9 dB 13.9 dB 10.9 dB 18 dB 100 ± 20 Ohm
350 MHz 44.3 dB/100m 27.2 dB 27.2 dB 12.9 dB 9.9 dB 17 dB 100 ± 22 Ohm
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temperature Range: -25°C To +75°C
UL Temp Rating: 75°C
Storage Temperature Range: -40°C To +85°C
Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

UV Resistance: Yes
Bulk Cable Weight: 17 lbs/1000ft
Max. Pull Tension: 20 lbs
Min. Bend Radius During Installation: 2.07 in
Min. Bend Radius/Minor Axis: 0.25 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMR
ISO/IEC Compliance: ISO/IEC 11801 Cat 5e
CPR Euroclass: Eca
Data Category: Category 5e
TIA/EIA Compliance: TIA-568.C.2 Cat 5e
Third Party Performance Verification: UL Verifieid Cat 5e

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Oil Resistance: Yes
Suitability – Outdoor: Yes
Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
7932A 0101000 Black Reel 1,000 ft 612825191612
7932A 0021000 Red Reel 1,000 ft 612825191605
7932A 1NH1000 Teal Reel 1,000 ft 612825191636
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: US Patent #’s 5, 606, 151; 5, 734, 126. EtherNet IP is a trademark of ControlNet International, Ltd. under license by Open DeviceNet Vendor Association, Inc. Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581.

History

Update and Revision: Revision Number: 0.539 Revision Date: 10-04-2023
