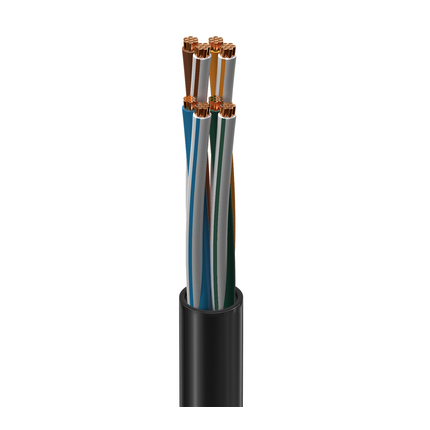

7930A - DataTuff® Cat 5e, 4 Pr #24 Str BC, PO Ins, PVC Jkt, CMX-Outdoor CMR

7930A – DataTuff® Cat 5e, 4 Pr #24 Str BC, PO Ins, PVC Jkt, CMX-Outdoor CMR

Call for Price

Compare
SKU: 7930A Categories: , , ,

Description

Product Overview

Suitable Applications: outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 24 AWG 7×32 BC – Bare Copper 4 4
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.24 in (6.1 mm)
Overall Cable Diameter (Nominal): 0.24 in (6.1 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/ft
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop. Typical Delay Skew
510 ns/100m 45 ns/100m 69% 12 ns/ft
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.5 dB/100m 65.3 62.3 62.8 59.8 63.8 60.8 20 23 100 ± 15 100 ± 15
4 4.9 dB/100m 56.3 53.3 51.4 48.4 51.7 48.7 23 23 100 ± 15 100 ± 15
8 6.9 dB/100m 51.8 48.8 44.9 41.9 45.7 42.7 24.5 24.5 100 ± 15 100 ± 15
10 7.8 dB/100m 50.3 47.3 42.5 39.5 43.8 40.8 25 25 100 ± 15 100 ± 15
16 9.9 dB/100m 47.3 44.3 37.4 34.4 39.7 36.7 25 25 100 ± 15 100 ± 15
20 11.1 dB/100m 45.8 42.8 34.7 31.7 37.7 34.7 25 25 100 ± 15 100 ± 15
25 12.5 dB/100m 44.3 41.3 21.8 28.8 35.8 32.8 24.3 24.3 100 ± 15 100 ± 15
31.25 14.1 dB/100m 42.9 39.9 28.8 25.8 33.9 30.9 23.6 23.6 100 ± 15 100 ± 15
62.5 20.4 dB/100m 38.4 35.4 18 15 27.8 24.8 21.5 21.5 100 ± 15 100 ± 15
100 26.4 dB/100m 35.3 32.3 8.9 5.9 23.8 20.8 20.1 20.1 100 ± 15
155 33.7 dB/100m 32.5 29.5 19.9 16.9 15.8 100 ± 25
200 38.9 dB/100m 30.8 27.8 17.7 14.7 15 100 ± 25
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CMX-Outdoor)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
60°C -40°C To +75°C -25°C To +75°C -40°C To +85°C
Bend Radius
Stationary Min.
0.960 in (24.4 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 26 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMR, CMX-Outdoor
CEC / C(UL) Compliance: CMR
ICEA Compliance: S-90-661
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
Third Party Performance Verification: Category 5e Patch
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-6
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Operating temperatures are subject to length de-rating. Cable passes -25C Cold Bend per UL 1581.

History

Update and Revision: Revision Number: 0.530 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
7930A 0101000 Black Reel 1,000 ft 612825191575 C
7930A 0102000 Black Reel 2,000 ft 612825191582 C
