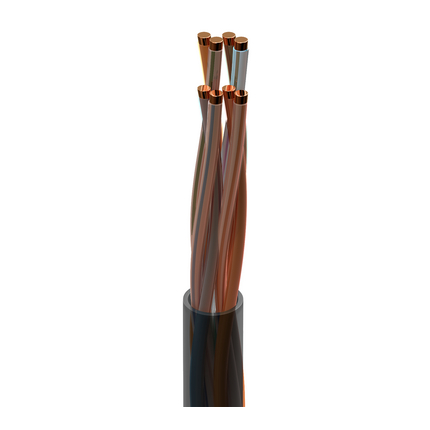

7928A - DataTuff® Cat 5e, 4 Bonded-Pr #24 Sol BC, FEP Ins, FEP Jkt, CMP CMP-LC

7928A – DataTuff® Cat 5e, 4 Bonded-Pr #24 Sol BC, FEP Ins, FEP Jkt, CMP CMP-LC

Call for Price

Compare
SKU: 7928A Categories: , , ,

Description

Product Overview

Suitable Applications: extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 24 AWG Solid BC – Bare Copper 4 4
Insulation
Material Color Code
FEP – Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: Yes
Outer Jacket
Material Nom. Diameter
FEP – Fluorinated Ethylene Propylene 0.183 in (4.65 mm)
Overall Cable Diameter (Nominal): 0.183 in (4.65 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
510 ns/100m 25 ns/100m 72%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 65.3 65.3 63.3 63.3 63.8 60.8 20 100 ± 12 95-110
4 4.0 dB/100m 56.3 56.3 52.3 52.3 51.7 48.7 23.6 100 ± 12 95-110
8 5.7 dB/100m 51.8 51.8 46.1 46.1 45.7 42.7 25.4 100 ± 12 95-107
10 6.4 dB/100m 50.3 50.3 43.9 43.9 43.8 40.8 26 100 ± 12 95-107
16 8.1 dB/100m 47.3 47.3 39.1 39.1 39.7 36.7 26 100 ± 12 95-107
20 9.2 dB/100m 45.8 45.8 35.2 35.2 37.7 34.7 26 100 ± 12 95-107
25 10.3 dB/100m 44.3 44.3 34.1 34.1 35.8 32.8 25.5 100 ± 15 95-107
31.25 11.6 dB/100m 42.9 42.9 31.3 31.3 33.9 30.9 25 100 ± 15 95-107
62.5 16.8 dB/100m 38.4 38.4 21.6 21.6 27.8 24.8 23.5 100 ± 15 95-107
100 21.7 dB/100m 35.3 35.3 17.1 17.1 23.8 20.8 22.5 100 ± 15
155 27.7 dB/100m 32.5 32.5 4.7 4.7 19.9 16.9 19 100 ± 18
200 32 dB/100m 30.8 30.8 3 3 17.7 14.7 19 100 ± 20
250 36.4 dB/100m 29.3 29.3 0 0 15.8 12.8 18 100 ± 20
300 40.5 dB/100m 28.2 28.2 0 0 14.2 11.2 18 100 ± 20
310 41.3 dB/100m 27.9 27.9 13.9 10.9 18 100 ± 20
350 44.3 dB/100m 27.2 27.2 12.9 9.9 17 100 ± 22
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
150°C -70°C To +150°C -55°C To +150°C -70°C To +150°C
Bend Radius
Stationary Min.
0.25 in (6.4 mm)
Max. Pull Tension: 40 lbs (18 kg)
Bulk Cable Weight: 22 lbs/1000ft

Standards and Compliance

Environmental Suitability: Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: NFPA 262 Plenum Flame Test (UL910),UL723 (NFPA 255), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
ICEA Compliance: S-90-661
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: EtherNet IP is a trademark of ControlNet International, Ltd. under license by Open DeviceNet Vendor Association, Inc. Operating temperatures are subject to length de-rating. Cable passes -70C Cold Bend per UL 1581.

History

Update and Revision: Revision Number: 0.577 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
7928A 0101000 Black Reel 1,000 ft 612825191476
7928A 0105000 Black Reel 5,000 ft 612825191483
