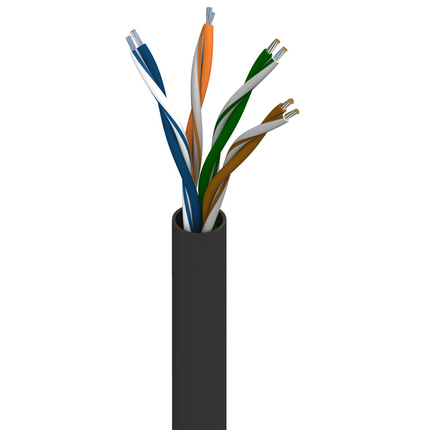

7924A - DataTuff® Cat 5e, 4 Bonded-Pr #24 Str TC, PO Ins, PVC Jkt, CMX-Outdoor CMR

7924A – DataTuff® Cat 5e, 4 Bonded-Pr #24 Str TC, PO Ins, PVC Jkt, CMX-Outdoor CMR

Call for Price

Compare
SKU: 7924A Categories: , , ,

Description

Product Overview

Suitable Applications: outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 24 AWG 7×32 TC – Tinned Copper 4 4
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: Yes
Outer Jacket
Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.242 in (6.15 mm) No
Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 66 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
510 ns/100m 25 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.4 dB/100m 65.3 65.3 62.9 63.8 60.8 20 100 ± 12 105 ± 10
4 4.8 dB/100m 56.3 56.3 51.5 51.7 48.7 23 100 ± 12 100 ± 10
8 6.8 dB/100m 51.8 51.8 45 45.7 42.7 24.5 100 ± 12 100 ± 10
10 7.7 dB/100m 50.3 50.3 42.6 43.8 40.8 25 100 ± 12 100 ± 10
16 9.7 dB/100m 47.3 47.3 37.5 39.7 36.7 25 100 ± 12 100 ± 10
20 11.0 dB/100m 45.8 45.8 34.8 37.7 34.7 25 100 ± 12 100 ± 10
25 12.4 dB/100m 44.3 44.3 31.9 35.8 32.8 24.3 100 ± 15 100 ± 10
31.25 13.9 dB/100m 42.9 42.9 29 33.9 30.9 23.6 100 ± 15 100 ± 10
62.5 20.2 dB/100m 38.4 38.4 18.3 27.8 24.8 21.5 100 ± 15 100 ± 10
100 26.0 dB/100m 35.3 35.3 9.2 23.8 20.8 20.1 100 ± 18
155 33.2 dB/100m 32.5 32.5 0 19.9 16.9 19 100 ± 18
200 38.4 dB/100m 30.8 30.8 17.7 14.7 19 100 ± 20
250 43.7 dB/100m 29.3 29.3 15.8 12.8 18 100 ± 20
300 48.6 dB/100m 28.2 28.2 14.2 11.2 18 100 ± 20
310 49.5 dB/100m 27.9 27.9 13.9 10.9 18 100 ± 20
350 53.2 dB/100m 27.2 27.2 12.9 9.9 17 100 ± 22
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CMX-Outdoor)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
60°C -40°C To +75°C -25°C To +75°C -25°C To +75°C
Bend Radius
Stationary Min.
0.25 in (6.4 mm)
Max. Pull Tension: 40 lbs (18 kg)
Bulk Cable Weight: 26 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMR, CMX-Outdoor
CEC / C(UL) Compliance: CMX-Outdoor
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
Third Party Performance Verification: Category 5e Patch
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-6
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: EtherNet/IP is a trademark of ControlNet Internation, Ltd. under license by Open DeviceNet Vendor Association, Inc. Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581.
