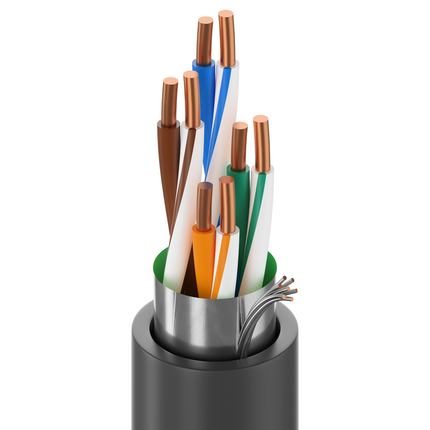

7919A - DataTuff® Cat 5e, 4 Pr #24 Sol BC, PO Ins, OS, PVC Jkt, MSHA CMR

7919A – DataTuff® Cat 5e, 4 Pr #24 Sol BC, PO Ins, OS, PVC Jkt, MSHA CMR

Call for Price

Compare
SKU: 7919A Categories: , , ,

Description

Product Overview

Suitable Applications: mining, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 AWG Solid BC – Bare Copper 4
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Polyester + Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.265 in (6.73 mm)
Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km 330 pF/ft
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
538 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 2.0 dB/100m 65.3 62.3 63 60 63.8 60.8 20 23 100 ± 15 Ohm 100 ± 15 Ohm
4 4.1 dB/100m 56.3 53.3 51 49 51.7 48.7 23 23 100 ± 15 Ohm 100 ± 15 Ohm
8 5.8 dB/100m 51.8 48.8 46 43 45.7 42.7 24.5 24.5 100 ± 15 Ohm 100 ± 15 Ohm
10 6.5 dB/100m 50.3 47.3 43 41 43.8 40.8 25 25 100 ± 15 Ohm 100 ± 15 Ohm
16 8.2 dB/100m 47.3 44.3 39 36 39.7 36.7 25 25 100 ± 15 Ohm 100 ± 15 Ohm
20 9.3 dB/100m 45.8 42.8 36.5 33.5 37.7 34.7 25 25 100 ± 15 Ohm 100 ± 15 Ohm
25 10.4 dB/100m 44.3 41.3 33.9 30.9 35.8 32.8 24.3 24.3 100 ± 15 Ohm 100 ± 15 Ohm
31.25 11.7 dB/100m 42.9 39.9 31 28 33.9 30.9 23.6 23.6 100 ± 15 Ohm 100 ± 15 Ohm
62.5 17.0 dB/100m 38.4 35.4 22 19 27.8 24.8 21.5 21.5 100 ± 15 Ohm 100 ± 15 Ohm
100 22.0 dB/100m 35.3 32.3 14 11 23.8 20.8 20.1 20.1 100 ± 15 Ohm 100 ± 15 Ohm
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CMX-Outdoor)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation
60°C -40°C To +75°C -25°C To +75°C
Bend Radius
Stationary Min.
1 in (25 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 30 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Aerial
Flammability / Reaction to Fire: UL1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMR, CMX-Outdoor
CEC / C(UL) Compliance: CMX-Outdoor
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): P-07-KA060004-MSHA

Product Notes

Notes: Operating temperatures are subject to length de-rating. Cable passes -40?C Cold Bend per UL 1581. T568A Plug Compatible Part Number: R301603 T568B Plug Compatible Part Number: R301604

History

Update and Revision: Revision Number: 0.535 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
7919A 01010000 Black 612825191216 C
7919A 0101000 Black Reel 1,000 ft 612825191209 C
7919A 0102000 Black Reel 2,000 ft 612825191223 C
7919A 0105000 Black Reel 5,000 ft 612825191230 C
7919A 0061000 Blue Reel 1,000 ft 612825191193 C
