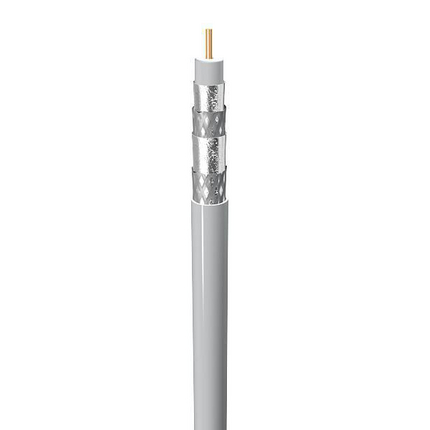

7916A - DBS Cable, RG6, 18 AWG BC, Quad Shield, CM

7916A – DBS Cable, RG6, 18 AWG BC, Quad Shield, CM

Call for Price

Compare
SKU: 7916A Categories: , , ,

Description

Product Overview

Suitable Applications: HDTV, DBS, Broadband CATV, Cable Modem

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BC – Bare Copper 0.04 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.18 in
Table Notes: Gas Injected
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
Braid 2 Aluminum 60%
Tape 3 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 4 Aluminum 40%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.298 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 4.8 Ohm/1000ft 4.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Min. Structural Return Loss (SRL)
5-1000 MHz 20 dB
1000-2250 MHz 15 dB
2250-3000 MHz 10 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss Nom. Structural Return Loss (SRL)
5 MHz 0.5 dB/100ft 30 dB
55 MHz 1.4 dB/100ft 24 dB
211 MHz 2.6 dB/100ft
500 MHz 4.1 dB/100ft
750 MHz 5.1 dB/100ft
862 MHz 5.5 dB/100ft
1000 MHz 6 dB/100ft
1450 MHz 7.8 dB/100ft
1800 MHz 8.6 dB/100ft
2250 MHz 9.8 dB/100ft
3000 MHz 11.3 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 83%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
5 MHz 0.58 dB/100ft
55 MHz 1.6 dB/100ft
211 MHz 3.05 dB/100ft
500 MHz 4.66 dB/100ft
750 MHz 5.65 dB/100ft
862 MHz 6.1 dB/100ft
1000 MHz 6.55 dB/100ft
1450 MHz 8 dB/100ft
1800 MHz 8.8 dB/100ft
2250 MHz 10 dB/100ft
3000 MHz 11.9 dB/100ft
Screening
Frequency [MHz] Shield Effectiveness
5 MHz
50 MHz 110 dB
50 MHz
1000 MHz
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 33 lbs/1000ft
Max. Pull Tension: 104 lbs
Min. Bend Radius/Minor Axis: 3 in

Standards

NEC/(UL) Compliance: CATV, CM
CEC/C(UL) Compliance: CM
CPR Euroclass: Eca
RG Type: 6
Series Type: 6

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 7916AP

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
7916A 010500 Black Reel 500 ft 612825191124
7916A 010U500 Black UnReel 500 ft 612825191148
7916A 0101000 Black Reel 1,000 ft 612825191117
7916A 010U1000 Black UnReel 1,000 ft 612825191094
7916A 0105000 Black Reel 5,000 ft 612825191087
7916A 009500 White Reel 500 ft 612825191049
7916A 009U500 White UnReel 500 ft 612825191100
7916A 0091000 White Reel 1,000 ft 612825191070
7916A 009U1000 White UnReel 1,000 ft 612825191056
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.465 Revision Date: 04-14-2023
