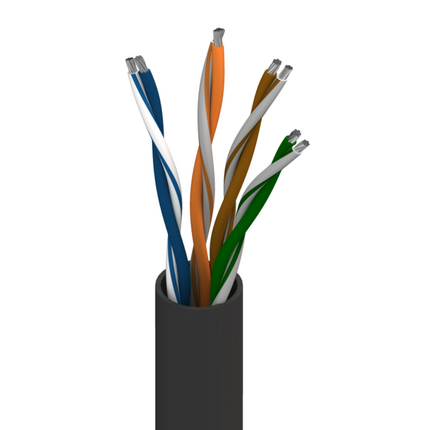

7905A - DataTuff® 5e, 4 Pr #24 Str TC, PO Ins, TPE Jkt, Flexible CMR

7905A – DataTuff® 5e, 4 Pr #24 Str TC, PO Ins, TPE Jkt, Flexible CMR

Call for Price

Compare
SKU: 7905A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Physical Characteristics (Overall)

Conductor
Element AWG Stranding Material No. of Pairs
Pair(s) 24 7×32 TC – Tinned Copper 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Element Material Nominal Diameter Nominal Wall Thickness
Pair(s) PO – Polyolefin 0.040 in 0.008 in
Bonded-Pair: Yes
Color Chart
Number Color
1 Blue & White/Blue
2 Orange & White/Orange
3 Green & White/Green
4 Brown & White/Brown
Outer Jacket
Material Nominal Diameter
TPE – Thermoplastic Elastomer 0.242 in

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
28.8 Ohm/1000ft 3.0 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
66 pF/ft 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
510 ns/100m 25 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.4 dB/100m 65.3 dB 65.3 dB 62.9 dB 62.9 dB 63.8 dB 60.8 dB 20 dB 100 ± 12 Ohm 105 ± 10
4 MHz 4.8 dB/100m 56.3 dB 56.3 dB 51.5 dB 51.5 dB 51.7 dB 48.7 dB 23.6 dB 100 ± 12 Ohm 100 ± 10
8 MHz 6.8 dB/100m 51.8 dB 51.8 dB 45.0 dB 45.0 dB 45.7 dB 42.7 dB 25.4 dB 100 ± 12 Ohm 100 ± 10
10 MHz 7.7 dB/100m 50.3 dB 50.3 dB 42.6 dB 42.6 dB 43.8 dB 40.8 dB 26 dB 100 ± 12 Ohm 100 ± 10
16 MHz 9.7 dB/100m 47.3 dB 47.3 dB 37.5 dB 37.5 dB 39.7 dB 36.7 dB 26 dB 100 ± 12 Ohm 100 ± 10
20 MHz 11.0 dB/100m 45.8 dB 45.8 dB 34.8 dB 34.8 dB 37.7 dB 34.7 dB 26 dB 100 ± 12 Ohm 100 ± 10
25 MHz 12.4 dB/100m 44.3 dB 44.3 dB 31.9 dB 31.9 dB 35.8 dB 32.8 dB 25.5 dB 100 ± 15 Ohm 100 ± 10
31.25 MHz 13.9 dB/100m 42.9 dB 42.9 dB 29.0 dB 29.0 dB 33.9 dB 30.9 dB 25 dB 100 ± 15 Ohm 100 ± 10
62.5 MHz 20.2 dB/100m 38.4 dB 38.4 dB 18.3 dB 18.3 dB 27.8 dB 24.8 dB 23.5 dB 100 ± 15 Ohm 100 ± 10
100 MHz 26 dB/100m 35.3 dB 35.3 dB 9.2 dB 9.2 dB 23.8 dB 20.8 dB 22.5 dB 100 ± 15 Ohm 100 ± 10
155 MHz 33.2 dB/100m 32.5 dB 32.5 dB 19.9 dB 16.9 dB 19 dB 100 ± 18 Ohm 100 ± 10
200 MHz 38.4 dB/100m 30.8 dB 30.8 dB 17.7 dB 14.7 dB 19 dB 100 ± 20 Ohm 100 ± 10
250 MHz 43.7 dB/100m 29.3 dB 29.3 dB 15.8 dB 12.8 dB 18 dB 100 ± 20 Ohm 100 ± 10
300 MHz 48.6 dB/100m 28.2 dB 28.2 dB 14.2 dB 11.2 dB 18 dB 100 ± 20 Ohm 100 ± 10
310 MHz 49.5 dB/100m 27.9 dB 27.9 dB 13.9 dB 10.9 dB 18 dB 100 ± 20 Ohm 100 ± 10
350 MHz 53.2 dB/100m 27.2 dB 27.2 dB 12.9 dB 9.9 dB 17 dB 100 ± 22 Ohm 100 ± 10
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temperature Range: -25°C To +75°C
UL Temp Rating: 75°C
Storage Temperature Range: -25°C To +75°C
Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

UV Resistance: Yes
Bulk Cable Weight: 26 lbs/1000ft
Max. Pull Tension: 41 lbs
Min. Bend Radius During Installation: 2.42 in
Min. Bend Radius/Minor Axis: 0.25 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG
ISO/IEC Compliance: ISO/IEC 1801 Cat 5e
Data Category: Category 5e
TIA/EIA Compliance: TIA-568.C.2 Cat 5e

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2011/65/EU (RoHS 2): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Oil Resistance: Yes
Suitability – Outdoor: Yes
Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT4
UL Flammability: UL1666 Riser

Related Part Numbers

Variants
Item # UPC
7905A 0021000 612825424215
7905A 0061000 612825422754
7905A 1NH1000 612825422747
7905A B591000 612825422730

Product Notes

Notes: US Patent # 6, 273, 977. Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581.
