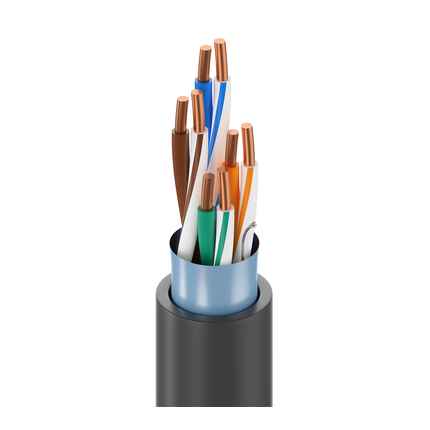

7903A - DataTuff® Cat 5e, 4 Pr #22 Sol BC, PO Ins, OS, PVC Jkt, PLTC CMR

7903A – DataTuff® Cat 5e, 4 Pr #22 Sol BC, PO Ins, OS, PVC Jkt, PLTC CMR

Call for Price

Compare
SKU: 7903A Categories: , , ,

Description

Product Overview

Suitable Applications: power-limited tray, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 22 AWG Solid BC – Bare Copper 4 4
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: Yes
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Outer Jacket
Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.335 in (8.51 mm) No
Overall Cable Diameter (Nominal): 0.335 in (8.51 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance
56.5 Ohm/km (17.2 Ohm/1000ft) 17 pF/ft (56 pF/m) 330 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
510 ns/100m 25 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 65.3 62.3 63 60 63.8 60.8 20 100 ± 15 100 ± 15
4 4.1 dB/100m 56.3 53.3 51 49 51.7 48.7 23 100 ± 15 100 ± 15
8 5.8 dB/100m 51.8 48.8 46 43 45.7 42.7 24.5 100 ± 15 100 ± 15
10 6.5 dB/100m 50.3 47.3 43 41 43.8 40.8 25 100 ± 15 100 ± 15
16 8.2 dB/100m 47.3 44.3 39 36 39.7 36.7 25 100 ± 15 100 ± 15
20 9.3 dB/100m 45.8 42.8 36.5 33.5 37.7 34.7 25 100 ± 15 100 ± 15
25 10.4 dB/100m 44.3 41.3 33.9 30.9 35.8 32.8 24.3 100 ± 15 100 ± 15
31.25 11.7 dB/100m 42.9 39.9 31 28 33.9 30.9 23.6 100 ± 15 100 ± 15
62.5 17.0 dB/100m 38.4 35.4 22 19 27.8 24.8 21.5 100 ± 15 100 ± 15
100 22.0 dB/100m 35.3 32.3 14 11 23.8 20.8 20.1 100 ± 15
155 28.1 dB/100m 32.5 29.5 4.4 1.4 19.9 16.9 18.8 100 ± 25
200 32 dB/100m 30.8 27.8 4 1 17.7 14.7 18.0 100 ± 25
250 36.9 dB/100m 29.3 26.3 15.8 12.8 18 100 ± 25
300 41.0 dB/100m 28.2 25.1 14.2 11.2 17.3 100 ± 25
310 41.8 dB/100m 27.9 24.9 13.9 10.9 16.8 100 ± 25
350 44.9 dB/100m 27.2 24.1 12.9 9.9 16.3 100 ± 25
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
75°C -40°C To +75°C -25°C To +75°C -25°C To +75°C
Bend Radius
Stationary Min.
3.38 in (85.9 mm)
Max. Pull Tension: 40 lbs (18 kg)
Bulk Cable Weight: 43 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: UL1666 Riser
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: CMR, PLTC
CEC / C(UL) Compliance: CMR
TIA/EIA Compliance: TIA 568-C.2 Category 5e
ISO/IEC Compliance: ISO/IEC 11801 Cat 5e
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.280 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
7903A 0103000 612825421924
7903A 0101000 Black Reel 1,000 ft 612825421917
7903A 0105000 Black Reel 5,000 ft 612825421931
