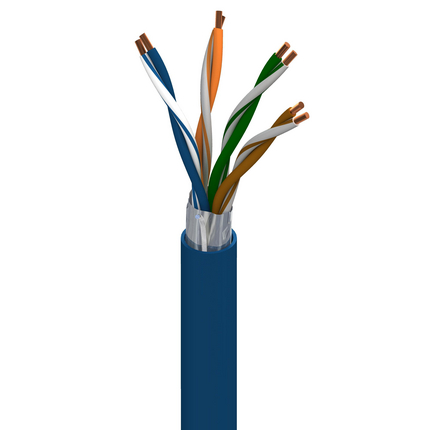

7901A - DataTuff® 5e, 4 Bonded-Pr #24 Sol BC, FEP Ins, OS, FEP Jkt, CMP, Extreme Temp

7901A – DataTuff® 5e, 4 Bonded-Pr #24 Sol BC, FEP Ins, OS, FEP Jkt, CMP, Extreme Temp

Call for Price

Compare
SKU: 7901A Categories: , , ,

Description

Product Overview

Suitable Applications: extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Physical Characteristics (Overall)

Conductor
Element AWG Stranding Material No. of Pairs
Pair(s) 24 Solid BC – Bare Copper 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Element Material Nominal Diameter Nominal Wall Thickness
Pair(s) FEP – Fluorinated Ethylene Propylene 0.044 in 0.011 in
Bonded-Pair: Yes
Color Chart
Number Color
1 Blue & White/Blue
2 Orange & White/Orange
3 Green & White/Green
4 Brown & White/Brown
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 24
Outer Jacket
Material Nominal Diameter
FEP – Fluorinated Ethylene Propylene 0.231 in

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
29.7 Ohm/1000ft 3.0 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
66 pF/ft 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
510 ns/100m 25 ns/100m 72%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted)
1 MHz 2 dB/100m 65.3 dB 65.3 dB 63.3 dB 63.3 dB 63.8 dB 60.8 dB 20 dB 100 ± 12 Ohm
4 MHz 4 dB/100m 56.3 dB 56.3 dB 52.3 dB 52.3 dB 51.7 dB 48.7 dB 23.6 dB 100 ± 12 Ohm
8 MHz 5.7 dB/100m 51.8 dB 51.8 dB 46.1 dB 46.1 dB 45.7 dB 42.7 dB 25.4 dB 100 ± 12 Ohm
10 MHz 6.4 dB/100m 50.3 dB 50.3 dB 43.9 dB 43.9 dB 43.8 dB 40.8 dB 26 dB 100 ± 12 Ohm
16 MHz 8.1 dB/100m 47.3 dB 47.3 dB 39.1 dB 39.1 dB 39.7 dB 36.7 dB 26 dB 100 ± 12 Ohm
20 MHz 9.2 dB/100m 45.8 dB 45.8 dB 35.2 dB 35.2 dB 37.7 dB 34.7 dB 26 dB 100 ± 12 Ohm
25 MHz 10.3 dB/100m 44.3 dB 44.3 dB 34.1 dB 34.1 dB 35.8 dB 32.8 dB 25.5 dB 100 ± 15 Ohm
31.25 MHz 11.6 dB/100m 42.9 dB 42.9 dB 31.3 dB 31.3 dB 33.9 dB 30.9 dB 25 dB 100 ± 15 Ohm
62.5 MHz 16.8 dB/100m 38.4 dB 38.4 dB 21.6 dB 21.6 dB 27.8 dB 24.8 dB 23.5 dB 100 ± 15 Ohm
100 MHz 21.7 dB/100m 35.3 dB 35.3 dB 17.1 dB 17.1 dB 23.8 dB 20.8 dB 22.5 dB 100 ± 15 Ohm
155 MHz 27.7 dB/100m 32.5 dB 32.5 dB 4.7 dB 4.7 dB 19.9 dB 16.9 dB 19 dB 100 ± 18 Ohm
200 MHz 32 dB/100m 30.8 dB 30.8 dB 3 dB 3 dB 17.7 dB 14.7 dB 19 dB 100 ± 20 Ohm
250 MHz 36.4 dB/100m 29.3 dB 29.3 dB 0 dB 0 dB 15.8 dB 12.8 dB 18 dB 100 ± 20 Ohm
300 MHz 40.5 dB/100m 28.2 dB 28.2 dB 0 dB 0 dB 14.2 dB 11.2 dB 18 dB 100 ± 20 Ohm
310 MHz 41.3 dB/100m 27.9 dB 27.9 dB 13.9 dB 10.9 dB 18 dB 100 ± 20 Ohm
350 MHz 44.3 dB/100m 27.2 dB 27.2 dB 12.9 dB 9.9 dB 17 dB 100 ± 22 Ohm
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temperature Range: -55°C To +150°C
UL Temp Rating: 150°C
Storage Temperature Range: -70°C To +150°C
Operating Temperature Range: -70°C To +150°C

Mechanical Characteristics

Bulk Cable Weight: 34 lbs/1000ft
Max. Pull Tension: 46 lbs
Min. Bend Radius During Installation: 2.31 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
ISO/IEC Compliance: ISO/IEC 1801 Cat 5e
Data Category: Category 5e
TIA/EIA Compliance: TIA-568.C.2 Cat 5e

Applicable Environmental and Other Programs

Environmental Space: Indoor – Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT6
UL Flammability: NFPA 262 (UL 910)

Plenum/Non-Plenum

Plenum (Y/N): Yes

History

Update and Revision: Revision Number: 0.238 Revision Date: 10-04-2023
