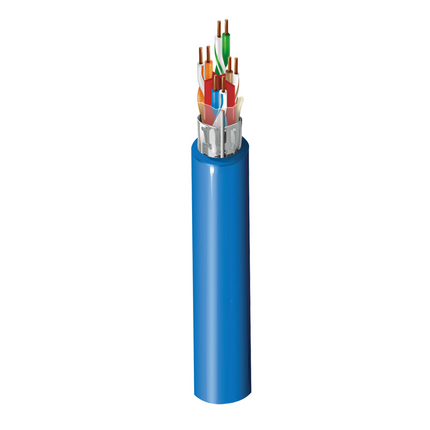

7835ANH - CAT 6 4P23AWG, F/UTP, LSZH Jkt

7835ANH – CAT 6 4P23AWG, F/UTP, LSZH Jkt

Call for Price

Compare
SKU: 7835ANH Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6 and PoE application

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
23 Solid BC – Bare Copper 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material Nominal Diameter
PE – Polyethylene 1.16 mm
Color Chart
Number Color
Pair #1 Blue & White with Blue
Pair #2 Orange & White with Orange
Pair #3 Green & White with Green
Pair #4 Brown & White with Brown
Cabling
Filler
Central Spline
Outer Shield
Material Drainwire Material Drainwire AWG
Bi-Laminate (Alum+Poly) Tinned Copper 26 AWG
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.2 mm 0.2 mm Yes

Construction and Dimensions

Min Elongation at Breakof Insulation: 100 %
Min Elongation at Breakof Jacket: 100 %
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
95 Ohm/km 4 %
Capacitance
Max. Capacitance Unbalance Max. Mutual Capacitance
160 pF/100m 56 pF/m
Dielectric Strength: 2.5 kVdc for 2s
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay Skew
45 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 75.3 dB 72.3 dB 73.2 dB 70.2 dB 68.0 dB 65.0 dB 20.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 66.3 dB 63.3 dB 62.5 dB 59.5 dB 56.0 dB 53.0 dB 23.0 dB 34.0 dB 23.0 dB
10 MHz 6.0 dB/100m 60.3 dB 57.3 dB 54.4 dB 51.4 dB 48.0 dB 45.0 dB 25.0 dB 30.0 dB 15.0 dB
16 MHz 7.6 dB/100m 57.2 dB 54.2 dB 49.8 dB 46.8 dB 43.9 dB 40.9 dB 25.0 dB 28.0 dB 10.9 dB
31.25 MHz 10.7 dB/100m 52.9 dB 49.9 dB 42.4 dB 39.4 dB 38.1 dB 35.1 dB 23.6 dB 25.1 dB 5.1 dB
62.5 MHz 15.5 dB/100m 48.4 dB 45.4 dB 33.4 dB 30.4 dB 32.1 dB 29.1 dB 21.5 dB 22.0 dB
100 MHz 19.9 dB/100m 45.3 dB 42.3 dB 26.2 dB 23.2 dB 28.0 dB 25.0 dB 20.1 dB 20.0 dB
125 MHz 22.5 dB/100m 43.8 dB 40.8 dB 22.3 dB 19.3 dB 26.1 dB 23.1 dB 19.4 dB 19.0 dB
200 MHz 29.1 dB/100m 40.8 dB 37.8 dB 13.2 dB 10.2 dB 22.0 dB 19.0 dB 18.0 dB 17.0 dB
250 MHz 33.0 dB/100m 39.3 dB 36.3 dB 8.3 dB 5.3 dB 20.0 dB 17.0 dB 17.2 dB 16.0 dB
Table Notes: Limits below 4MHz are for information only.
Coupling Attenuation Class: Type II
Segregation class according EN50174-2: c
Voltage
Voltage Rating [V]
72 Vdc

Temperature Range

Operating Temperature Range: -30°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 52 kg/km
Max. Pull Tension: 80 N

Standards

ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
Data Category: Category 6
TIA/EIA Compliance: ANSI/TIA-568-D.2 Category 6

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 – Halogen Amount: 5 mg/g
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 10 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Length
7835ANH 006305M Blue 305 m
7835ANH 008305M Gray 305 m

History

Update and Revision: Revision Number: 0.44 Revision Date: 12-12-2023
