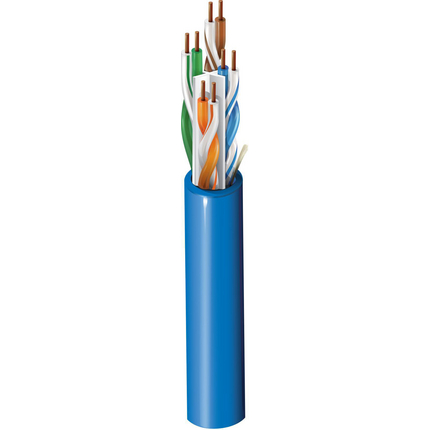

7834ANC - CAT 6 4P 23AWG, U/UTP, LSZH Jkt, Indoor

7834ANC – CAT 6 4P 23AWG, U/UTP, LSZH Jkt, Indoor

Call for Price

Compare
SKU: 7834ANC Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6 and PoE application

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 Solid BC – Bare Copper 4
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.98 mm (0.039 in) Blue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe
Outer Jacket
Material Nom. Diameter Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 5.8 mm (0.23 in) Yes

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km (28.6 Ohm/1000ft) 56 pF/m (17 pF/ft) 330 pF/100m 100 Ohm
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 538 ns/100m 45 ns/100m 65%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.0 dB/100m 75.3 72.3 73.3 70.3 67.8 64.8 20.0 40.0 35.0
4 3.8 dB/100m 66.3 63.3 62.5 59.5 56.0 53.0 23.0 40.0 23.0
8 5.3 dB/100m 60.3 58.8 55.5 54.5 49.7 46.7 24.5 40.0 16.9
16 7.6 dB/100m 57.2 54.2 49.6 46.6 43.9 40.7 25.0 38.0 10.9
20 8.5 dB/100m 55.8 52.8 47.3 44.3 41.8 38.8 25.0 37.0 9.0
31.25 10.7 dB/100m 52.9 49.9 42.2 39.2 38.1 35.1 23.6 35.1
62.5 15.5 dB/100m 48.4 45.4 32.9 29.9 32.1 29.1 21.5 32.0
100 19.9 dB/100m 45.3 42.3 25.4 22.4 27.8 24.8 20.1 30.0
150 24.8 dB/100m 42.7 39.7 17.9 14.9 24.5 21.5 18.9 28.2
200 29.1 dB/100m 40.8 37.8 11.7 8.7 22.0 19.0 18.0 27.0
250 32.8 dB/100m 39.3 36.3 6.5 3.5 20.0 17.0 17.3 26.0
300 36.5 dB/100m 37.1 34.1 18.2 15.2 16.7 25.2
230 31.3 dB/100m 38.9 36.9 16.9 13.9 16.3
400 43.0 dB/100m 35.2 32.2 15.7 12.7 16.0
450 46.2 dB/100m 34.5 31.5 14.7 11.7 15.4
500 49.1 dB/100m 33.8 30.8 13.8 10.8 15.2
550 52.0 dB/100m 33.2 30.2 13.0 10.0 14.9
600 55.0 dB/100m 33 30 12.2 9.2 14.6
Table Notes: For the frequency exceed 250MHz, the values for information only

Mechanical Characteristics

Temperature
Operating
-20°C To +75°C
Bend Radius
Installation Min.
28.4 mm (1.12 in)
Max. Pull Tension: 110 N (25 lbf)
Bulk Cable Weight: 40 kg/km (27 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Indoor, Indoor, Non-Halogenated
Flammability / Reaction to Fire: IEC 60332-3-22
IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category: Category 6
TIA/EIA Compliance: ANSI/TIA 568.2-D
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5, IEC 61034-2 – Smoke Density Min Transmittance = ? 60% Light Transmittance
European Halogen Free Standards: IEC 60754-1 – Halogen Amount = 5 mg/g, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Jacket sequentially marked

History

Update and Revision: Revision Number: 0.55 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length
7834ANC 006U1000 Blue Unreel 1,000 ft
7834ANC 008U1000 Grey Unreel 1,000 ft
