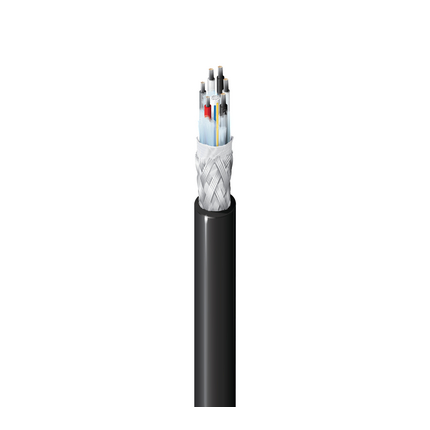

7817A - SMPTE 311M Double Jacket, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG

7817A – SMPTE 311M Double Jacket, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG

Call for Price

Compare
SKU: 7817A Categories: , , , ,

Description

Product Overview

Suitable Applications: SMPTE 311M Camera Cable

Multiconductor

Multiconductor Conductor and Insulation
Element No. of Conductors AWG Stranding Material Nominal Conductor DCR Insulation Material Insulation Nominal Diameter
24 AWG 2 24 7×32 TC – Tinned Copper 23.3 Ohm/1000ft PE – Polyethylene 0.048 in
20 AWG 4 20 19×32 TC – Tinned Copper 8.8 Ohm/1000ft PE – Polyethylene 0.062 in
Multiconductor Color Chart
Description Color
24 AWG Red
24 AWG Gray
20 AWG White
20 AWG Black
Shielding: Braid
Multiconductor Inner Jacket
Element Material Nominal Diameter
Overall PVC – Polyvinyl Chloride 0.357 in
Multiconductor UL Voltage
UL Description UL Voltage Rating
24 AWG 300 V RMS
20 AWG 300 V RMS

Fiber

Fiber Cable Construction
Fiber Type Fiber Count
OS2, G.657.A2 2
Fiber Color Coding: Yellow, Blue
Buffer Specification
Buffer Material Buffer Diameter
PVC – Polyvinyl Chloride 900 µm
Mode Field Diameter: 9.2 µm
Wavelength@Optical SM1: 1310 nm, 1550 nm
Max. Attenuation at 1310 nm: 0.50 dB/km
Max. Attenuation at 1550 nm: 0.50 dB/km

Overall Cable

Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
PVC – Polyvinyl Chloride 0.472 in 0.058 in PVC – Polyvinyl Chloride
Overall Shielding
Layer 1 Type Material Coverage
Overall Braid TC – Tinned Copper 85 %
Jacket: PVC
Separator Material@OuterJacket1 1: PVC – Polyvinyl Chloride
Operating Temperature Range: -40°C to 70°C
Installation Temperature Range: -10°C to 70°C
Storage Temperature Range: -40°C to 70°C
Max. Pull Tension: 1350 N
Bulk Cable Weight: 108 lbs/1000ft

Applicable Standards & Environmental Programs

EU Directive Compliance: Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2012/19/EU (WEEE): Yes
CA Prop 65 (CJ for Wire and Cable): Yes
China RoHS II (GB/T 26572-2011): Yes

Suitability

Suitability – Outdoor: Yes

Flame Test

UL Flammability: VW-1

Plenum/Non-Plenum

Plenum (Y/N): No

Product Notes

Notes: Bend Radius is based upon (FOTP-37) @ 20°C. Plenum version and other conductor counts/diameters available by special order.

History

Update and Revision: Revision Number: 0.151 Revision Date: 11-27-2023
Variants
Item # Color UPC Length
7817A 0101000 Black 612825189909 1,000 ft
