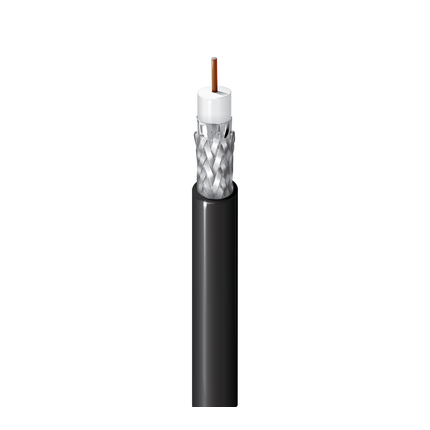

7810A – 50 Ohm Wireless Transmission Coax, RF 400, RG-8, 10 AWG Solid BCCA, Foil + 95% TC Braid, PE Jkt

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

RG Type: 8
Conductor
Size Stranding Nom. Diameter Material
10 AWG Solid 0.111 in BCCA – Bare Copper Covered Aluminum
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.285 in (7.24 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PE – Polyethylene 0.403 in (10.2 mm)
Overall Cable Diameter (Nominal): 0.403 in (10.2 mm)

Electrical Characteristics

VSWR
Frequency Max. VSWR
5 – 6000 MHz 1.25:1
Attenuation
Frequency Nom. Attenuation
30 MHz 0.7 dB/100ft
50 MHz 0.9 dB/100ft
150 MHz 1.5 dB/100
220 MHz 1.8 dB/100ft
450 MHz 2.7 dB/100ft
900 MHz 3.8 dB/100ft
1500 MHz 5.1 dB/100ft
1800 MHz 5.6 dB/100ft
2000 MHz 6 dB/100ft
2500 MHz 6.7 dB/100ft
3000 MHz 7.5 dB/100ft
3500 MHz 8.2 dB/100ft
4500 MHz 9.5 dB/100ft
5800 MHz 11.1 dB/100ft
6000 MHz 11.4 dB/100ft
Power Rating
Frequency Max. Power Rating
30 MHz 3,427 W
50 MHz 2,588 W
150 MHz 1,428 W
220 MHz 1,195 W
450 MHz 817 W
900 MHz 575 W
1,500 MHz 437 W
2,000 MHz 375 W
2,500 MHz 334 W
3,500 MHz 282 W
4,500 MHz 247 W
6,000 MHz 213 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
1.3 Ohm/1000ft 2.0 Ohm/1000ft (6.6 Ohm/km) 23 pF/ft (75 pF/m) 50 Ohm 86%
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
Operating
-40°C to +80°C
Bend Radius
Installation Min.
2 in (51 mm)
Max. Pull Tension: 145 lbs (65.8 kg)
Bulk Cable Weight: 77 lbs/1000ft

Standards and Compliance

Environmental Suitability: Outdoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial – When supported by messenger wire
Sustainability: CA Prop 65
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.525 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
7810A 010500 Black Reel 500 ft 612825189800 C
7810A 0101000 Black Reel 1,000 ft 612825189794 C
