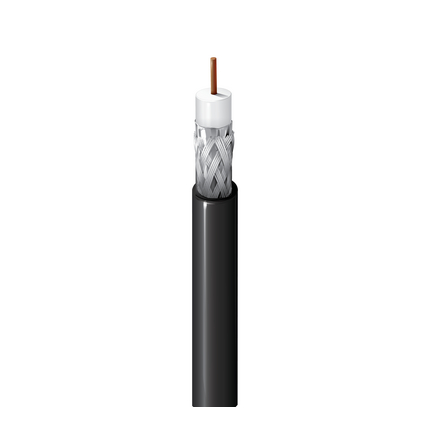

7806A – 50 Ohm Wireless Transmission Coax, RF 195, RG58, 19 AWG Solid BC, Foil + 90% TC Braid, PE Jkt

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

RG Type: 58
Conductor
Size Stranding Nom. Diameter Material
19 AWG Solid 0.037 in BC – Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.110 in (2.79 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
2 Braid Tinned Copper (TC) 90%
Outer Jacket
Material Nom. Diameter
PE – Polyethylene 0.195 in (4.95 mm)
Overall Cable Diameter (Nominal): 0.195 in (4.95 mm)

Electrical Characteristics

VSWR
Frequency Max. VSWR
5 – 6000 MHz 1.25:1
Attenuation
Frequency Nom. Attenuation
5 MHz 0.75 dB/100ft
10 MHz 1 dB/100ft
30 MHz 1.8 dB/100ft
50 MHz 2.5 dB/100ft
150 MHz 4 dB/100ft
220 MHz 4.9 dB/100ft
450 MHz 7.1 dB/100ft
900 MHz 10.3 dB/100ft
1500 MHz 13.7 dB/100ft
1800 MHz 15.2 dB/100ft
2000 MHz 16.1 dB/100ft
2500 MHz 18.3 dB/100ft
3000 MHz 20.5 dB/100ft
4500 MHz 26.5 dB/100ft
5800 MHz 31.2 dB/100ft
6000 MHz 32 dB/100ft
Power Rating
Frequency Max. Power Rating
30 MHz 890 W
50 MHz 694 W
150 MHz 403 W
220 MHz 336 W
450 MHz 231 W
900 MHz 162 W
1,500 MHz 124 W
2,000 MHz 107 W
2,500 MHz 95 W
3,500 MHz 80 W
4,500 MHz 70 W
6,000 MHz 61 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
7.6 Ohm/1000ft 4.2 Ohm/1000ft (14 Ohm/km) 24.3 pF/ft (79.7 pF/m) 50 Ohm 77%
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
Operating
-40°C to +80°C
Bend Radius
Installation Min.
0.5 in (13 mm)
Max. Pull Tension: 40 lbs (18 kg)
Bulk Cable Weight: 23 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.510 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
7806A 010500 Black Reel 500 ft 612825189602 C
7806A 0101000 Black Reel 1,000 ft 612825189596 C
