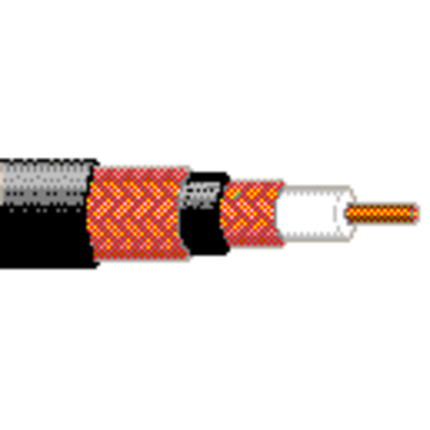

7803A – Video Triax, RG11, #14 Solid, PE Jacket, Waterblocked

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
14 Solid BC – Bare Copper 0.064 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.285 in
Table Notes: Gas Injected
Inner Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 95%
Inner Jacket
Material Nominal Diameter
PE – Polyethylene 0.365 in
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 80%
Table Notes: Polyethylene
Outer Jacket
Material Nominal Diameter
PE – Polyethylene 0.475 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR Nominal Outer Shield DCR
2.5 Ohm/1000ft 2.5 Ohm/1000ft 1.6 Ohm/1000ft 1.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.1 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Min. Structural Return Loss (SRL)
5-850 MHz 21 dB
850-3000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.14 dB/100ft
3.6 MHz 0.3 dB/100ft
10 MHz 0.4 dB/100ft
71.5 MHz 1.1 dB/100ft
135 MHz 1.6 dB/100ft
270 MHz 2.3 dB/100ft
360 MHz 2.6 dB/100ft
540 MHz 3.3 dB/100ft
720 MHz 3.8 dB/100ft
750 MHz 4 dB/100ft
1000 MHz 4.6 dB/100ft
1500 MHz 5.9 dB/100ft
2250 MHz 7.4 dB/100ft
3000 MHz 12.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 84%
Voltage
Non-UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 80°C
Operating Temperature Range: -55°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 113 lbs/1000ft
Max. Pull Tension: 170 lbs
Min. Bend Radius/Minor Axis: 10 in

Standards

RG Type: 11

Applicable Environmental and Other Programs

Environmental Space: Outdoor – Water Exposure
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: Yes – When supported by messenger wire
Suitability – Burial: Yes
Suitability – Indoor: Yes
Suitability – Outdoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
7803A 0101000 Black Reel 1,000 ft 612825436010
7803A 0105000 Black Reel 5,000 ft 612825440499
7803A 1VH5000 Brown Reel 5,000 ft 612825440482
7803A U7Y5000 White Reel 5,000 ft 612825189374
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.330 Revision Date: 11-09-2022
